# 背景调研

为钓鱼场地所有者和爱好者提供便捷的信息和服务

# 功能规划

- 钓鱼场地预约：用户可以浏览不同场地的位置、设施情况和可用时间，用户可以选择日期、时间段和人数，然后预订场地。

- 钓鱼活动比赛：用户可以在小程序上浏览活动信息并报名参加活动比赛，组织者可以通过小程序收集报名信息并进行管理，包括签到、活动记录、活动照片、活动评论等。

- 活动数据统计：小程序可以统计活动数据，包括参与人数、活动评分、反馈意见等。

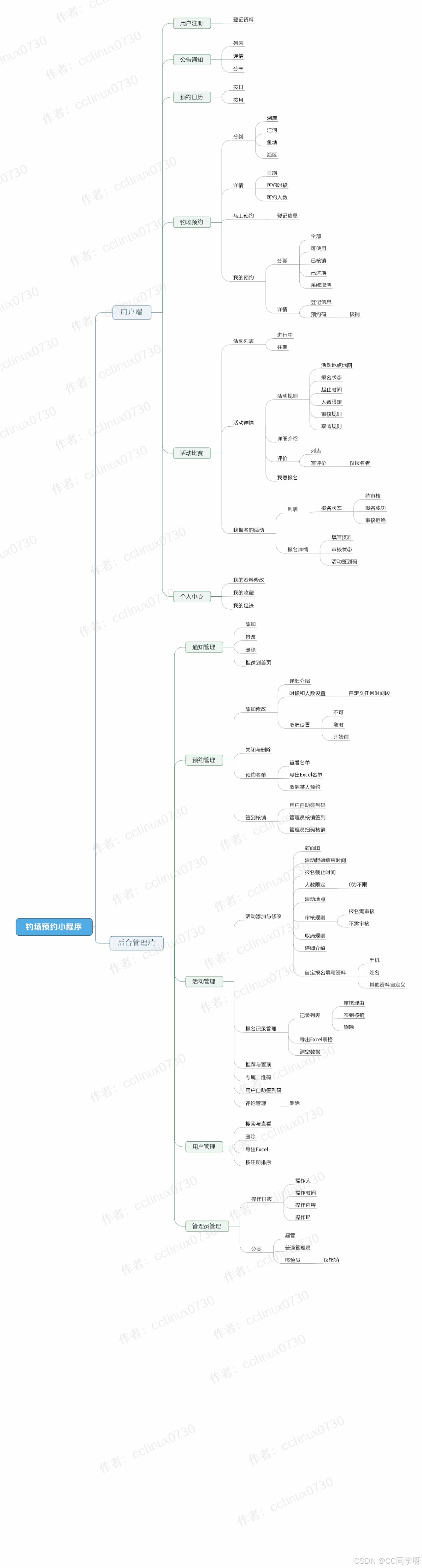

#  概要设计

# 数据库设计

```

ActivityModel.DB_STRUCTURE = {

_pid: 'string|true',

ACTIVITY_ID: 'string|true',

ACTIVITY_TITLE: 'string|true|comment=标题',

ACTIVITY_STATUS: 'int|true|default=1|comment=状态 0=未启用,1=使用中',

ACTIVITY_CATE_ID: 'string|true|default=0|comment=分类',

ACTIVITY_CATE_NAME: 'string|false|comment=分类冗余',

ACTIVITY_CANCEL_SET: 'int|true|default=1|comment=取消设置 0=不允,1=允许,2=仅截止前可取消',

ACTIVITY_CHECK_SET: 'int|true|default=0|comment=审核 0=不需要审核,1=需要审核',

ACTIVITY_IS_MENU: 'int|true|default=1|comment=是否公开展示名单',

ACTIVITY_MAX_CNT: 'int|true|default=20|comment=人数上限 0=不限',

ACTIVITY_START: 'int|false|comment=活动开始时间',

ACTIVITY_END: 'int|false|comment=活动截止时间',

ACTIVITY_STOP: 'int|true|default=0|comment=报名截止时间 0=永不过期',

ACTIVITY_ORDER: 'int|true|default=9999',

ACTIVITY_VOUCH: 'int|true|default=0',

ACTIVITY_FORMS: 'array|true|default=[]',

ACTIVITY_OBJ: 'object|true|default={}',

ACTIVITY_JOIN_FORMS: 'array|true|default=[]',

ACTIVITY_ADDRESS: 'string|false|comment=详细地址',

ACTIVITY_ADDRESS_GEO: 'object|false|comment=详细地址坐标参数',

ACTIVITY_QR: 'string|false',

ACTIVITY_VIEW_CNT: 'int|true|default=0',

ACTIVITY_JOIN_CNT: 'int|true|default=0',

ACTIVITY_COMMENT_CNT: 'int|true|default=0',

ACTIVITY_USER_LIST: 'array|true|default=[]|comment={name,id,pic}',

ACTIVITY_ADD_TIME: 'int|true',

ACTIVITY_EDIT_TIME: 'int|true',

ACTIVITY_ADD_IP: 'string|false',

ACTIVITY_EDIT_IP: 'string|false',

};

MeetModel.DB_STRUCTURE = {

_pid: 'string|true',

MEET_ID: 'string|true',

MEET_ADMIN_ID: 'string|true|comment=添加的管理员',

MEET_TITLE: 'string|true|comment=标题',

MEET_JOIN_FORMS: 'array|true|default=[]|comment=表单字段设置',

MEET_DAYS: 'array|true|default=[]|comment=最近一次修改保存的可用日期',

MEET_CATE_ID: 'string|true|comment=分类编号',

MEET_CATE_NAME: 'string|true|comment=分类冗余',

MEET_ADDRESS: 'string|false|comment=详细地址',

MEET_ADDRESS_GEO: 'object|false|comment=详细地址坐标参数',

MEET_FORMS: 'array|true|default=[]',

MEET_OBJ: 'object|true|default={}',

MEET_CANCEL_SET: 'int|true|default=1|comment=取消设置 0=不允,1=允许,2=仅开始前可取消',

MEET_STATUS: 'int|true|default=1|comment=状态 0=未启用,1=使用中,9=停止预约,10=已关闭',

MEET_ORDER: 'int|true|default=9999',

MEET_VOUCH: 'int|true|default=0',

MEET_QR: 'string|false',

MEET_ADD_TIME: 'int|true',

MEET_EDIT_TIME: 'int|true',

MEET_ADD_IP: 'string|false',

MEET_EDIT_IP: 'string|false',

};

```

# 核心公关

```

class MeetService extends BaseProjectService {

constructor() {

super();

this._log = new LogUtil(projectConfig.MEET_LOG_LEVEL);

}

/**

* 抛出异常

* @param {*} msg

* @param {*} code

*/

AppError(msg) {

this._log.error(msg);

super.AppError(msg);

}

_meetLog(meet, func = '', msg = '') {

let str = '';

str = `[MEET=${meet.MEET_TITLE}][${func}] ${msg}`;

this._log.debug(str);

}

/** 统一获取Meet（某天) */

async getMeetOneDay(meetId, day, where, fields = '*') {

let meet = await MeetModel.getOne(where, fields);

if (!meet) return meet;

meet.MEET_DAYS_SET = await this.getDaysSet(meetId, day, day);

return meet;

}

/** 获取日期设置 */

async getDaysSet(meetId, startDay, endDay = null) {

let where = {

DAY_MEET_ID: meetId

}

if (startDay && endDay && endDay == startDay)

where.day = startDay;

else if (startDay && endDay)

where.day = ['between', startDay, endDay];

else if (!startDay && endDay)

where.day = ['<=', endDay];

else if (startDay && !endDay)

where.day = ['>=', startDay];

let orderBy = {

'day': 'asc'

}

let list = await DayModel.getAllBig(where, 'day,dayDesc,times', orderBy, 1000);

for (let k = 0; k < list.length; k++) {

delete list[k]._id;

}

return list;

}

// 按时段统计某时段报名情况

async statJoinCnt(meetId, timeMark) {

let whereDay = {

DAY_MEET_ID: meetId,

day: this.getDayByTimeMark(timeMark)

};

let day = await DayModel.getOne(whereDay, 'times');

if (!day) return;

let whereJoin = {

JOIN_MEET_TIME_MARK: timeMark,

JOIN_MEET_ID: meetId

};

let ret = await JoinModel.groupCount(whereJoin, 'JOIN_STATUS');

let stat = { //统计数据

succCnt: ret['JOIN_STATUS_1'] || 0, //1=预约成功,

cancelCnt: ret['JOIN_STATUS_10'] || 0, //10=已取消,

adminCancelCnt: ret['JOIN_STATUS_99'] || 0, //99=后台取消

};

let times = day.times;

for (let j in times) {

if (times[j].mark === timeMark) {

let data = {

['times.' + j + '.stat']: stat

}

await DayModel.edit(whereDay, data);

return;

}

}

}

// 预约前检测

async beforeJoin(userId, meetId, timeMark) {

await this.checkMeetRules(userId, meetId, timeMark);

}

// 用户预约逻辑

async join() {

}

// 根据日期获取其所在天设置

getDaySetByDay(meet, day) {

for (let k = 0; k < meet.MEET_DAYS_SET.length; k++) {

if (meet.MEET_DAYS_SET[k].day == day)

return dataUtil.deepClone(meet.MEET_DAYS_SET[k]);

}

return null;

}

// 根据时段标识获取其所在天

getDayByTimeMark(timeMark) {

return timeMark.substr(1, 4) + '-' + timeMark.substr(5, 2) + '-' + timeMark.substr(7, 2);

}

// 根据时段标识获取其所在天设置

getDaySetByTimeMark(meet, timeMark) {

let day = this.getDayByTimeMark(timeMark);

for (let k = 0; k < meet.MEET_DAYS_SET.length; k++) {

if (meet.MEET_DAYS_SET[k].day == day)

return dataUtil.deepClone(meet.MEET_DAYS_SET[k]);

}

return null;

}

// 根据时段标识获取其所在时段设置

getTimeSetByTimeMark(meet, timeMark) {

let day = this.getDayByTimeMark(timeMark);

for (let k = 0; k < meet.MEET_DAYS_SET.length; k++) {

if (meet.MEET_DAYS_SET[k].day != day) continue;

for (let j in meet.MEET_DAYS_SET[k].times) {

if (meet.MEET_DAYS_SET[k].times[j].mark == timeMark)

return dataUtil.deepClone(meet.MEET_DAYS_SET[k].times[j]);

}

}

return null;

}

// 预约时段人数和状态控制校验

async checkMeetTimeControll(meet, timeMark, meetPeopleCnt = 1) {

if (!meet) this.AppError('预约时段设置错误, 预约项目不存在');

let daySet = this.getDaySetByTimeMark(meet, timeMark); // 当天设置

let timeSet = this.getTimeSetByTimeMark(meet, timeMark); // 预约时段设置

if (!daySet || !timeSet) this.AppError('预约时段设置错误day&time');

let statusDesc = timeSet.status == 1 ? '开启' : '关闭';

let limitDesc = '';

if (timeSet.isLimit) {

limitDesc = '人数上限MAX=' + timeSet.limit;

} else

limitDesc = '人数不限制NO';

this._meetLog(meet, `------------------------------`);

this._meetLog(meet, `#预约时段控制,预约日期=<${daySet.day}>`, `预约时段=[${timeSet.start}-${timeSet.end}],状态=${statusDesc}, ${limitDesc} 当前预约成功人数=${timeSet.stat.succCnt}`);

if (timeSet.status == 0) this.AppError('该时段预约已经关闭，请选择其他');

// 时段总人数限制

if (timeSet.isLimit) {

if (timeSet.stat.succCnt >= timeSet.limit) {

this.AppError('该时段预约人员已满，请选择其他');

}

let maxCnt = timeSet.limit - timeSet.stat.succCnt;

if (maxCnt < meetPeopleCnt) {

this.AppError('本时段最多还可以预约' + (maxCnt) + '人，您当前提交了' + meetPeopleCnt + '人，请调整后再提交');

}

}

}

/** 报名规则校验 */

async checkMeetRules(userId, meetId, timeMark, formsList = null) {

// 预约时段是否存在

let meetWhere = {

_id: meetId

};

let day = this.getDayByTimeMark(timeMark);

let meet = await this.getMeetOneDay(meetId, day, meetWhere);

if (!meet) {

this.AppError('预约时段选择错误，请重新选择');

}

// 预约时段人数和状态控制校验

let meetPeopleCnt = formsList ? formsList.length : 1;

await this.checkMeetTimeControll(meet, timeMark, meetPeopleCnt);

// 截止规则

await this.checkMeetEndSet(meet, timeMark);

// 针对用户的次数限制

await this.checkMeetLimitSet(userId, meet, timeMark, meetPeopleCnt);

}

// 预约次数限制校验

async checkMeetLimitSet(userId, meet, timeMark, nowCnt) {

if (!meet) this.AppError('预约次数规则错误, 预约项目不存在');

let meetId = meet._id;

let daySet = this.getDaySetByTimeMark(meet, timeMark); // 当天设置

let timeSet = this.getTimeSetByTimeMark(meet, timeMark); // 预约时段设置

this._meetLog(meet, `------------------------------`);

this._meetLog(meet, `#预约次数规则,预约日期=<${daySet.day}>`, `预约时段=[${timeSet.start}～${timeSet.end}]`);

let where = {

JOIN_MEET_ID: meetId,

JOIN_MEET_TIME_MARK: timeMark,

JOIN_USER_ID: userId,

JOIN_STATUS: JoinModel.STATUS.SUCC

}

let cnt = await JoinModel.count(where);

let maxCnt = projectConfig.MEET_MAX_JOIN_CNT;

this._meetLog(meet, `预约次数规则,mode=本时段可预约${maxCnt}次`, `当前已预约=${cnt}次`);

if (cnt >= maxCnt)

this.AppError(`您本时段已经预约，不能继续预约`);

}

// 预约截止设置校验

async checkMeetEndSet(meet, timeMark) {

if (!meet) this.AppError('预约截止规则错误, 预约项目不存在');

this._meetLog(meet, `------------------------------`);

let daySet = this.getDaySetByTimeMark(meet, timeMark); // 当天设置

let timeSet = this.getTimeSetByTimeMark(meet, timeMark); // 预约时段设置

this._meetLog(meet, `#预约截止规则,预约日期=<${daySet.day}>`, `预约时段=[${timeSet.start}-${timeSet.end}]`);

let nowTime = timeUtil.time('Y-M-D h:m:s');

/*

let startTime = daySet.day + ' ' + timeSet.start + ':00';

this._meetLog(meet, `预约开始规则,mode=<时段过期判定>`, `预约开始时段=${startTime},当前时段=${nowTime}`);

if (nowTime > startTime) {

this.AppError('该时段已开始，无法预约，请选择其他');

}*/

let endTime = daySet.day + ' ' + timeSet.end + ':59';

this._meetLog(meet, `预约开始规则,mode=<时段过期判定>`, `预约结束时段=${endTime},当前时段=${nowTime}`);

if (nowTime > endTime) {

this.AppError('该时段已结束，无法预约，请选择其他');

}

}

/**  预约详情 */

async viewMeet(meetId) {

let fields = '*';

let where = {

_id: meetId,

MEET_STATUS: ['in', [MeetModel.STATUS.COMM, MeetModel.STATUS.OVER]]

}

let meet = await MeetModel.getOne(where, fields);

if (!meet) return null;

let getDaysSet = [];

meet.MEET_DAYS_SET = await this.getDaysSet(meetId, timeUtil.time('Y-M-D')); //今天及以后

let daysSet = meet.MEET_DAYS_SET;

let now = timeUtil.time('Y-M-D');

for (let k = 0; k < daysSet.length; k++) {

let dayNode = daysSet[k];

if (dayNode.day < now) continue; // 排除过期

let getTimes = [];

for (let j in dayNode.times) {

let timeNode = dayNode.times[j];

// 排除状态关闭的时段

if (timeNode.status != 1) continue;

// 判断数量是否已满

if (timeNode.isLimit && timeNode.stat.succCnt >= timeNode.limit)

timeNode.error = '预约已满';

// 截止规则

if (!timeNode.error) {

try {

await this.checkMeetEndSet(meet, timeNode.mark);

} catch (ex) {

if (ex.name == 'AppError')

timeNode.error = '预约结束';

else

throw ex;

}

}

getTimes.push(timeNode);

}

dayNode.times = getTimes;

getDaysSet.push(dayNode);

}

// 只返回需要的字段

let ret = {};

ret.MEET_DAYS_SET = getDaysSet;

ret.MEET_QR = meet.MEET_QR;

ret.MEET_TITLE = meet.MEET_TITLE;

ret.MEET_CATE_NAME = meet.MEET_CATE_NAME;

ret.MEET_OBJ = meet.MEET_OBJ;

ret.MEET_ADDRESS = meet.MEET_ADDRESS;

ret.MEET_ADDRESS_GEO = meet.MEET_ADDRESS_GEO;

return ret;

}

/**  预约前获取关键信息 */

async detailForJoin(userId, meetId, timeMark) {

let fields = 'MEET_DAYS_SET,MEET_JOIN_FORMS, MEET_TITLE';

let where = {

_id: meetId,

MEET_STATUS: ['in', [MeetModel.STATUS.COMM, MeetModel.STATUS.OVER]]

}

let day = this.getDayByTimeMark(timeMark);

let meet = await this.getMeetOneDay(meetId, day, where, fields);

if (!meet) return null;

let dayDesc = timeUtil.fmtDateCHN(this.getDaySetByTimeMark(meet, timeMark).day);

let timeSet = this.getTimeSetByTimeMark(meet, timeMark);

let timeDesc = timeSet.start + '～' + timeSet.end;

meet.dayDesc = dayDesc + ' ' + timeDesc;

// 取出本人最近一次本时段填写表单

let whereMy = {

JOIN_USER_ID: userId,

}

let orderByMy = {

JOIN_ADD_TIME: 'desc'

}

let joinMy = await JoinModel.getOne(whereMy, 'JOIN_FORMS', orderByMy);

if (joinMy)

meet.myForms = joinMy.JOIN_FORMS;

else

meet.myForms = [];

return meet;

}

/** 按天获取预约项目 */

async getMeetListByDay(day) {

let where = {

'meet.MEET_STATUS': ['in', [MeetModel.STATUS.COMM, MeetModel.STATUS.OVER]],

'day': day,

};

let orderBy = {

'MEET_ORDER': 'asc',

'MEET_ADD_TIME': 'desc'

};

let fields = 'meet.MEET_ORDER,meet.MEET_ADD_TIME,meet.MEET_TITLE,meet.MEET_DAYS_SET,meet.MEET_OBJ.cover, DAY_MEET_ID, day, times';

let joinParams = {

from: MeetModel.CL,

localField: 'DAY_MEET_ID',

foreignField: '_id',

as: 'meet',

};

let list = await DayModel.getListJoin(joinParams, where, fields, orderBy, 1, 100, false);

list = list.list;

let retList = [];

for (let k = 0; k < list.length; k++) {

let usefulTimes = [];

for (let j in list[k].times) {

if (list[k].times[j].status != 1) continue;

usefulTimes.push(list[k].times[j]);

}

if (usefulTimes.length == 0) continue;

let node = {};

node.timeDesc = usefulTimes.length > 1 ? usefulTimes.length + '个时段' : usefulTimes[0].start;

node.title = list[k].meet.MEET_TITLE;

node.pic = list[k].meet.MEET_OBJ.cover;

node._id = list[k].DAY_MEET_ID;

retList.push(node);

}

return retList;

}

/** 获取从某天开始可预约的日期 */

async getHasDaysFromDay(day) {

let where = {

day: ['>=', day],

};

let fields = 'times,day';

let list = await DayModel.getAllBig(where, fields);

let retList = [];

for (let k = 0; k < list.length; k++) {

for (let n in list[k].times) {

if (list[k].times[n].status == 1) {

retList.push(list[k].day);

break;

}

}

}

return retList;

}

/** 取得预约分页列表 */

async getMeetList({

search, // 搜索条件

sortType, // 搜索菜单

sortVal, // 搜索菜单

orderBy, // 排序

cateId, //分类查询条件

page,

size,

isTotal = true,

oldTotal

}) {

orderBy = orderBy || {

'MEET_ORDER': 'asc',

'MEET_ADD_TIME': 'desc'

};

let fields = 'MEET_ADDRESS,MEET_TITLE,MEET_OBJ,MEET_DAYS,MEET_CATE_NAME,MEET_CATE_ID';

let where = {};

where.and = {

_pid: this.getProjectId() //复杂的查询在此处标注PID

};

if (cateId && cateId !== '0') where.and.MEET_CATE_ID = cateId;

where.and.MEET_STATUS = ['in', [MeetModel.STATUS.COMM, MeetModel.STATUS.OVER]]; // 状态

if (util.isDefined(search) && search) {

where.or = [

{ MEET_TITLE: ['like', search] },

];

} else if (sortType && util.isDefined(sortVal)) {

// 搜索菜单

switch (sortType) {

case 'sort': {

orderBy = this.fmtOrderBySort(sortVal, 'NEWS_ADD_TIME');

break;

}

case 'cateId': {

if (sortVal) where.and.MEET_CATE_ID = String(sortVal);

break;

}

}

}

let result = await MeetModel.getList(where, fields, orderBy, page, size, isTotal, oldTotal);

return result;

}

/** 取消我的预约 只有成功可以取消 */

async cancelMyJoin(userId, joinId) {

let where = {

JOIN_USER_ID: userId,

_id: joinId,

JOIN_IS_CHECKIN: 0, // 核销不能取消

JOIN_STATUS: JoinModel.STATUS.SUCC

};

let join = await JoinModel.getOne(where);

if (!join) {

this.AppError('未找到可取消的预约记录');

}

// 取消规则判定

let whereMeet = {

_id: join.JOIN_MEET_ID,

MEET_STATUS: ['in', [MeetModel.STATUS.COMM, MeetModel.STATUS.OVER]]

}

let meet = await this.getMeetOneDay(join.JOIN_MEET_ID, join.JOIN_MEET_DAY, whereMeet);

if (!meet) this.AppError('预约项目不存在或者已关闭');

let daySet = this.getDaySetByTimeMark(meet, join.JOIN_MEET_TIME_MARK);

let timeSet = this.getTimeSetByTimeMark(meet, join.JOIN_MEET_TIME_MARK);

if (!timeSet) this.AppError('被取消的时段不存在');

if (meet.MEET_CANCEL_SET == 0)

this.AppError('该预约不能取消');

let startT = daySet.day + ' ' + timeSet.start + ':00';

let startTime = timeUtil.time2Timestamp(startT);

let now = timeUtil.time();

if (meet.MEET_CANCEL_SET == 2 && now > startTime)

this.AppError('该预约时段已经开始，无法取消');

// TODO 已过期不能取消

await JoinModel.del(where);

// 统计

this.statJoinCnt(join.JOIN_MEET_ID, join.JOIN_MEET_TIME_MARK);

}

/** 取得我的预约详情 */

async getMyJoinDetail(userId, joinId) {

let fields = 'JOIN_COMPLETE_END_TIME,JOIN_IS_CHECKIN,JOIN_CHECKIN_TIME,JOIN_REASON,JOIN_MEET_ID,JOIN_MEET_TITLE,JOIN_MEET_DAY,JOIN_MEET_TIME_START,JOIN_MEET_TIME_END,JOIN_STATUS,JOIN_ADD_TIME,JOIN_CODE,JOIN_FORMS';

let where = {

_id: joinId,

JOIN_USER_ID: userId

};

return await JoinModel.getOne(where, fields);

}

/** 取得我的预约分页列表 */

async getMyJoinList(userId, {

search, // 搜索条件

sortType, // 搜索菜单

sortVal, // 搜索菜单

orderBy, // 排序

page,

size,

isTotal = true,

oldTotal

}) {

orderBy = orderBy || {

// 'JOIN_MEET_DAY': 'desc',

// 'JOIN_MEET_TIME_START': 'desc',

'JOIN_ADD_TIME': 'desc'

};

let fields = 'JOIN_COMPLETE_END_TIME,JOIN_IS_CHECKIN,JOIN_REASON,JOIN_MEET_ID,JOIN_MEET_TITLE,JOIN_MEET_DAY,JOIN_MEET_TIME_START,JOIN_MEET_TIME_END,JOIN_STATUS,JOIN_ADD_TIME,JOIN_OBJ';

let where = {

JOIN_USER_ID: userId

};

//where.MEET_STATUS = ['in', [MeetModel.STATUS.COMM, MeetModel.STATUS.OVER]]; // 状态

if (util.isDefined(search) && search) {

where['JOIN_MEET_TITLE'] = {

$regex: '.*' + search,

$options: 'i'

};

} else if (sortType) {

// 搜索菜单

switch (sortType) {

case 'cateId': {

if (sortVal) where.JOIN_MEET_CATE_ID = String(sortVal);

break;

}

case 'all': { //所有

break;

}

case 'use': { //可用未过期

where.JOIN_STATUS = JoinModel.STATUS.SUCC;

where.JOIN_COMPLETE_END_TIME = ['>=', timeUtil.time('Y-M-D h:m')];

break;

}

case 'check': { //已核销

where.JOIN_STATUS = JoinModel.STATUS.SUCC;

where.JOIN_IS_CHECKIN = 1;

break;

}

case 'timeout': { //已过期未核销

where.JOIN_STATUS = JoinModel.STATUS.SUCC;

where.JOIN_IS_CHECKIN = 0;

where.JOIN_COMPLETE_END_TIME = ['<', timeUtil.time('Y-M-D h:m')];

break;

}

case 'succ': { //预约成功

where.JOIN_STATUS = JoinModel.STATUS.SUCC;

//where.JOIN_MEET_DAY = ['>=', timeUtil.time('Y-M-D h:m')];

//where.JOIN_MEET_TIME_START = ['>=', timeUtil.time('h:m')];

break;

}

case 'cancel': { //已取消

where.JOIN_STATUS = ['in', [JoinModel.STATUS.CANCEL, JoinModel.STATUS.ADMIN_CANCEL]];

break;

}

}

}

let result = await JoinModel.getList(where, fields, orderBy, page, size, isTotal, oldTotal);

return result;

}

/** 取得我的某日预约列表 */

async getMyJoinSomeday(userId, day) {

let fields = 'JOIN_IS_CHECKIN,JOIN_MEET_ID,JOIN_MEET_TITLE,JOIN_MEET_DAY,JOIN_MEET_TIME_START,JOIN_MEET_TIME_END,JOIN_STATUS,JOIN_ADD_TIME';

let where = {

JOIN_USER_ID: userId,

JOIN_MEET_DAY: day

};

//where.MEET_STATUS = ['in', [MeetModel.STATUS.COMM, MeetModel.STATUS.OVER]]; // 状态

let orderBy = {

'JOIN_MEET_TIME_START': 'asc',

'JOIN_ADD_TIME': 'desc'

}

return await JoinModel.getAll(where, fields, orderBy);

}

}

```
