电商平台如何接入快递鸟电子面单API?

快递鸟是全球物流接口服务商,为电商 ERP、电商平台、仓储、清关公司提供物流跟踪、电子面单、智选物流、物流金融、在线下单等服务,解决电商的物流管理模块和金融模块。

    快递鸟是全球物流接口服务商,为电商 ERP、电商平台、仓储、清关公司提供物流跟踪、电子面单、智选物流、物流金融、在线下单等服务,解决电商的物流管理模块和金融模块。现就对快递鸟电子面单API做基本描述,并提供电子面单接口的对接方式。

一.接口介绍

    快递鸟电子面单接口支持四通一达、顺丰、EMS、宅急送、德邦、优速等15家国内常用快递的面单打印。通过快递鸟接口在线打印电子运单,即时生成运单号,无需录单,提高发货效率,提升送达时效。打印速度提升 4-6 倍、省去录单环节、取消抽单环节、充当捡货单、提升送达时效。

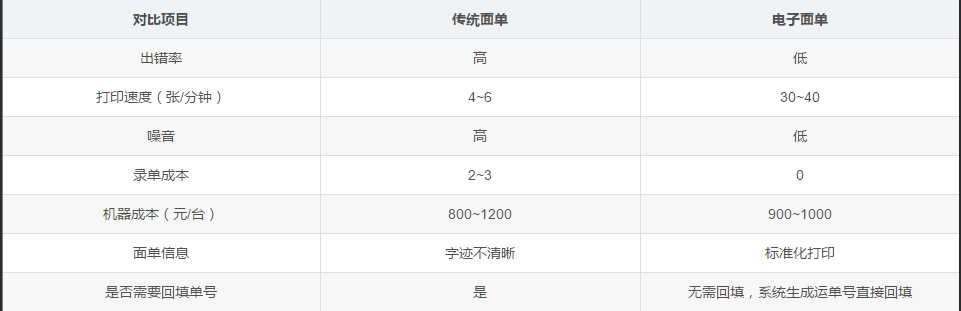

传统面单VS电子面单:

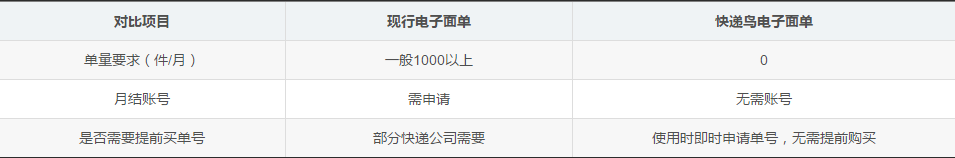

现行电子面单VS快递鸟电子面单:



二.JAVA对接方式
(1)电子面单接口是快递鸟提供给独立电商、仓储管理系统、物流供应链等物流系统平台使用的下单接口。
(2)为客户解决在线发货需求,商户通过网络选择快递公司发送请求通知快递公司有快递要发货。
(3) 客户把数据通过此接口转发到快递鸟,由快递鸟为您安排快递员上门取件的服务。
(4)订单编号(OrderCode)不可重复提交,重复提交系统会返回具体错误代码。
(5)接口支持的消息接收方式为HTTP POST,请求方法的编码格式(utf-8):"application/x-www-form-urlencoded;charset=utf-8"。

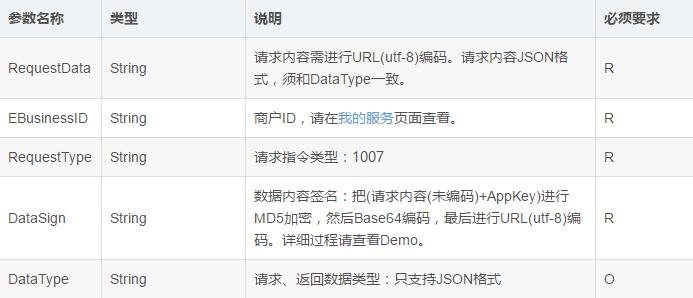

(6)请求系统级参数说明:


备注:R-必填(Required),O-可选(Optional),C-报文中该参数在一定条件下可选(Conditional)。

(7)接口地址:

API测试地址:http://testapi.kdniao.cc:8081/api/EOrderService

API正式地址:http://api.kdniao.cc/api/EOrderService

(10)JAVA对接案例

    其中秘钥需要到快递鸟官网申请

import java.io.BufferedReader;
import java.io.IOException;
import java.io.InputStreamReader;
import java.io.OutputStreamWriter;
import java.io.UnsupportedEncodingException;
import java.net.HttpURLConnection;
import java.net.URL;
import java.net.URLEncoder;
import java.util.HashMap;
import java.util.Map;
import com.sun.org.apache.xerces.internal.impl.dv.util.Base64;
import java.security.MessageDigest;

/**
 *
 * 快递鸟电子面单接口
 *
 * @技术QQ: 4009633321
 * @技术QQ群: 200121393
 * @see: http://www.kdniao.com/MiandanAPI.aspx
 * @copyright: 深圳市快金数据技术服务有限公司
 *
 * ID和Key请到官网申请:http://www.kdniao.com/ServiceApply.aspx
 */

public class KdGoldAPIDemo {

    //电商ID
    private String EBusinessID="请到快递鸟官网申请http://www.kdniao.com/ServiceApply.aspx";
    //电商加密私钥,快递鸟提供,注意保管,不要泄漏
    private String AppKey="请到快递鸟官网申请http://www.kdniao.com/ServiceApply.aspx"
    //请求url, 正式环境地址:http://api.kdniao.cc/api/Eorderservice
    private String ReqURL="http://testapi.kdniao.cc:8081/api/Eorderservice";


    /**
     * Json方式 电子面单
     * @throws Exception
     */
    public String orderOnlineByJson() throws Exception{
        String requestData= "{'OrderCode': '012657700387'," +
                "'ShipperCode':'EMS'," +
                "'PayType':1," +
                "'ExpType':1," +
                "'Cost':1.0," +
                "'OtherCost':1.0," +
                "'Sender':" +
                "{" +
                "'Company':'LV','Name':'Taylor','Mobile':'15018442396','ProvinceName':'上海','CityName':'上海','ExpAreaName':'青浦区','Address':'明珠路73号'}," +
                "'Receiver':" +
                "{" +
                "'Company':'GCCUI','Name':'Yann','Mobile':'15018442396','ProvinceName':'北京','CityName':'北京','ExpAreaName':'朝阳区','Address':'三里屯街道雅秀大厦'}," +
                "'Commodity':" +
                "[{" +
                "'GoodsName':'鞋子','Goodsquantity':1,'GoodsWeight':1.0}]," +
                "'Weight':1.0," +
                "'Quantity':1," +
                "'Volume':0.0," +
                "'Remark':'小心轻放'," +
                "'IsReturnPrintTemplate':1}";

        Map<String, String> params = new HashMap<String, String>();
        params.put("RequestData", urlEncoder(requestData, "UTF-8"));
        params.put("EBusinessID", EBusinessID);
        params.put("RequestType", "1007");
        String dataSign=encrypt(requestData, AppKey, "UTF-8");
        params.put("DataSign", urlEncoder(dataSign, "UTF-8"));
        params.put("DataType", "2");

        String result=sendPost(ReqURL, params);

        //根据公司业务处理返回的信息......

        return result;
    }
    /**
     * MD5加密
     * @param str 内容
     * @param charset 编码方式
     * @throws Exception
     */
    @SuppressWarnings("unused")
    private String MD5(String str, String charset) throws Exception {
        MessageDigest md = MessageDigest.getInstance("MD5");
        md.update(str.getBytes(charset));
        byte[] result = md.digest();
        StringBuffer sb = new StringBuffer(32);
        for (int i = 0; i < result.length; i++) {
            int val = result[i] & 0xff;
            if (val <= 0xf) {
                sb.append("0");
            }
            sb.append(Integer.toHexString(val));
        }
        return sb.toString().toLowerCase();
    }

    /**
     * base64编码
     * @param str 内容
     * @param charset 编码方式
     * @throws UnsupportedEncodingException
     */
    private String base64(String str, String charset) throws UnsupportedEncodingException{
        String encoded = Base64.encode(str.getBytes(charset));
        return encoded;


    @SuppressWarnings("unused")
    private String urlEncoder(String str, String charset) throws UnsupportedEncodingException{
        String result = URLEncoder.encode(str, charset);
        return result;
    }

    /**
     * 电商Sign签名生成
     * @param content 内容
     * @param keyValue Appkey
     * @param charset 编码方式
     * @throws UnsupportedEncodingException ,Exception
     * @return DataSign签名
     */
    @SuppressWarnings("unused")
    private String encrypt (String content, String keyValue, String charset) throws UnsupportedEncodingException, Exception
    {
        if (keyValue != null)
        {
            return base64(MD5(content + keyValue, charset), charset);
        }
        return base64(MD5(content, charset), charset);
    }

     /**
     * 向指定 URL 发送POST方法的请求
     * @param url 发送请求的 URL
     * @param params 请求的参数集合
     * @return 远程资源的响应结果
     */
    @SuppressWarnings("unused")
    private String sendPost(String url, Map<String, String> params) {
        OutputStreamWriter out = null;
        BufferedReader in = null;
        StringBuilder result = new StringBuilder();
        try {
            URL realUrl = new URL(url);
            HttpURLConnection conn =(HttpURLConnection) realUrl.openConnection();
            // 发送POST请求必须设置如下两行
            conn.setDoOutput(true);
            conn.setDoInput(true);
            // POST方法
            conn.setRequestMethod("POST");
            // 设置通用的请求属性
            conn.setRequestProperty("accept", "*/*");
            conn.setRequestProperty("connection", "Keep-Alive");
            conn.setRequestProperty("user-agent",
                    "Mozilla/4.0 (compatible; MSIE 6.0; Windows NT 5.1;SV1)");
            conn.setRequestProperty("Content-Type", "application/x-www-form-urlencoded");
            conn.connect();
            // 获取URLConnection对象对应的输出流
            out = new OutputStreamWriter(conn.getOutputStream(), "UTF-8");
            // 发送请求参数
            if (params != null) {
                  StringBuilder param = new StringBuilder();
                  for (Map.Entry<String, String> entry : params.entrySet()) {
                      if(param.length()>0){
                          param.append("&");
                      }
                      param.append(entry.getKey());
                      param.append("=");
                      param.append(entry.getValue());
                      System.out.println(entry.getKey()+":"+entry.getValue());
                  }
                  System.out.println("param:"+param.toString());
                  out.write(param.toString());
            }
            // flush输出流的缓冲
            out.flush();
            // 定义BufferedReader输入流来读取URL的响应
            in = new BufferedReader(
                    new InputStreamReader(conn.getInputStream(), "UTF-8"));
            String line;
            while ((line = in.readLine()) != null) {
                result.append(line);
            }
        } catch (Exception e) {
            e.printStackTrace();
        }
        //使用finally块来关闭输出流、输入流
        finally{
            try{
                if(out!=null){
                    out.close();
                }
                if(in!=null){
                    in.close();
                }
            }
            catch(IOException ex){
                ex.printStackTrace();
            }
        }
        return result.toString();
    }
}
