百世快递单号查询接口快递鸟快速对接案例

快递查询API接口是使用的物流单号即可实现查询物流信息。主要应用在电商商城、ERP系统商、WMS系统商、快递柜、银行等企业。。

快递查询API接口是使用的物流单号即可实现查询物流信息。主要应用在电商商城、ERP系统商、WMS系统商、快递柜、银行等企业。多家快递物流公司接口统一接入,建议对接接口提供商,一次性可以接入多家快递,在后期的技术维护也会省下很多工作。


目前快递查询API接口有两种实现方式,一种是主动查询,一种是订阅接口推送数据。以快递鸟接口为例(接口对接需要接口秘钥,这里用的是测试的,不能够正式使用,可以到快递鸟官网申请www.kdniao.com/,是免费申请秘钥的)最后附有一个的demo,更多demo可登陆快递鸟网站查询。

一.主动查询(即时查询API)

1)接口规则

a、查询接口支持按照运单号查询(单个查询,并发不超过10个/S)。

b、指定的物流运单号选择相应的快递公司编码,格式不对或则编码错误都会返失败的信息。如百世快递物流单号应选择百世快递公司编码(HTKY)

c、返回的物流跟踪信息按照发生的时间升序排列。

d、接口指令1002。

e、请求地址:快递鸟注册

2)系统级和应用级输入参数

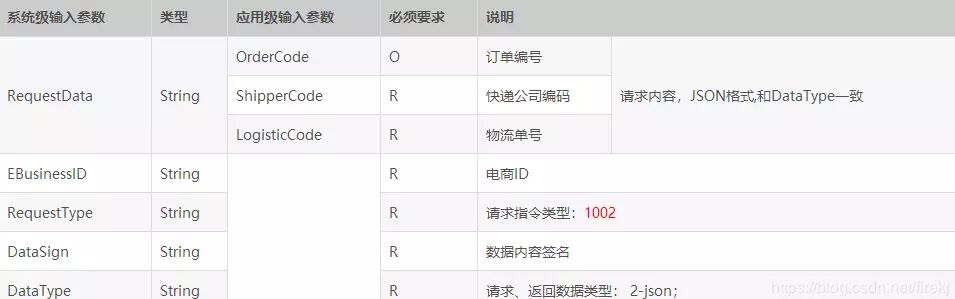

系统级输入参数

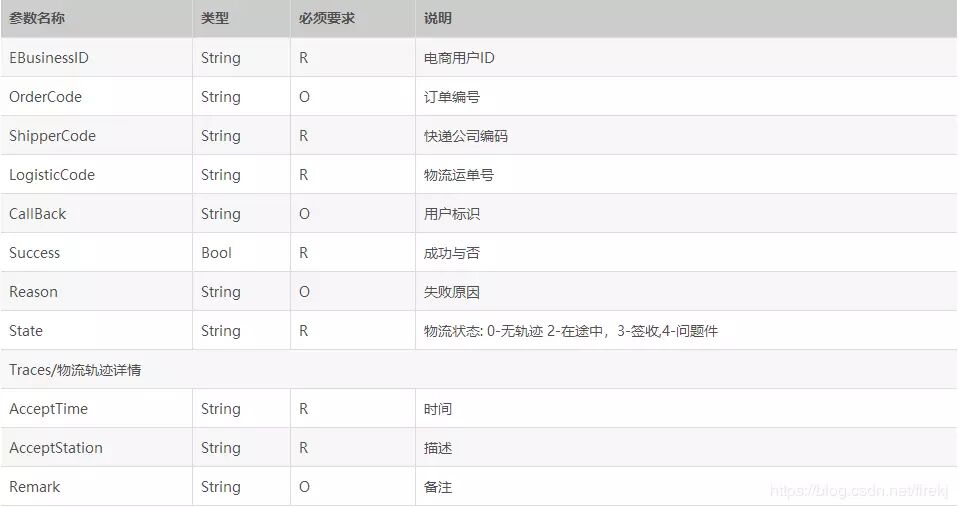

3)返回结果参数


4)JSON请求示例
{
“OrderCode”: “”,
“ShipperCode”: “SF”,
“LogisticCode”: “118650888018”
}
// "HTKY"为百世快递公司编码,其他编码可在快递鸟官网下载
5)JSON返回示例
//没有物流轨迹的
{
“EBusinessID”: “1109259”,"Traces":[],
“OrderCode”: “”,
“ShipperCode”: “SF”,
“LogisticCode”: “118461988807”,
“Success”: true,
“Reason”: null
}
//有物流轨迹的
{
“EBusinessID”: “1109259”,"OrderCode":"",
“ShipperCode”: “SF”,
“LogisticCode”: “118461988807”,
“Success”: true,"CallBack":"",
“State”: 3,
“Reason”: null,"Traces":[
    {       "AcceptTime": "2014/06/25 08:05:37",       "AcceptStation": "正在派件..(派件人:邓裕富,电话:18718866310)[深圳 市]",       "Remark": null
    },
    {       "AcceptTime": "2014/06/25 04:01:28",       "AcceptStation": "快件在 深圳集散中心 ,准备送往下一站 深圳 [深圳市]",       "Remark": null
    },
    {       "AcceptTime": "2014/06/2501:41:06",       "AcceptStation": "快件在 深圳集散中心 [深圳市]",       "Remark": null
    },
    {       "AcceptTime": "2014/06/24 20:18:58",       "AcceptStation": "已收件[深圳市]",       "Remark": null
   },
    {       "AcceptTime": "2014/06/24 20:55:28",       "AcceptStation": "快件在 深圳 ,准备送往下一站 深圳集散中心 [深圳市]",       "Remark": null
    },
    {       "AcceptTime": "2014/06/25 10:23:03",      "AcceptStation": "派件已签收[深圳市]",       "Remark": null
    },
    {       "AcceptTime": "2014/06/25 10:23:03",       "AcceptStation": "签收人是:已签收[深圳市]",       "Remark": null
    }
]

二.订阅接口推送数据(物流跟踪API)

订阅查询接口是定制化服务,用户可将订单信息订阅给快递公司,快递公司更新轨迹后,将实时转换成标准接口形式,推送给用户,起到实时推送的作用,提高效率。

同时用户订阅的数据还能选择是否通知快递员上门,实现在线下单功能。另外,快递鸟还有在途监控、电子面单等其他的接口方案,可以根据公司需求来选择。

1)接口规则

a、订单接收的信息(分给了的网点,业务员的信息),会通过推送接口推给客户(订阅并发不超过30次/S)客户需要按要求实现接口。

b、仅支持Json格式。

c、请求指令1008。

d、测试接口地址:

e、联调通过后请更换为正式地址:

f、分发及订阅接口需要客户方实现回调接口,回调RequestType(1008)

2)系统级和应用级参数

物流跟踪APIdemo

import java.io.BufferedReader;

import java.io.IOException;

import java.io.InputStreamReader;

import java.io.OutputStreamWriter;

import java.io.UnsupportedEncodingException;

import java.net.HttpURLConnection;

import java.net.URL;

import java.net.URLEncoder;

import java.util.HashMap;

import java.util.Map;

import java.security.MessageDigest;

/**

*

快递鸟订阅推送2.0接口

ID和Key请到官网申请:快递单号查询接口

//DEMO
public static void main(String[] args) {
    KdniaoSubscribeAPI api = new KdniaoSubscribeAPI();
    try {
        String result = api.orderTracesSubByJson();
        System.out.print(result);

    } catch (Exception e) {
        e.printStackTrace();
    }
}

//电商ID
private String EBusinessID="请到快递鸟官网申请http://www.kdniao.com/ServiceApply.aspx";
//电商加密私钥,快递鸟提供,注意保管,不要泄漏
private String AppKey="请到快递鸟官网申请http://www.kdniao.com/ServiceApply.aspx";
//测试请求url
private String ReqURL = "http://testapi.kdniao.cc:8081/api/dist";
//正式请求url
//private String ReqURL = "http://api.kdniao.cc/api/dist";

/**
 * Json方式  物流信息订阅
 * @throws Exception
 */
public String orderTracesSubByJson() throws Exception{
    String requestData="{'OrderCode': 'SF201608081055208281'," +                            "'ShipperCode':'SF'," +                            "'LogisticCode':'3100707578976'," +                            "'PayType':1," +                            "'ExpType':1," +                            "'CustomerName':'',"+                            "'CustomerPwd':''," +                            "'MonthCode':''," +                            "'IsNotice':0," +                            "'Cost':1.0," +                            "'OtherCost':1.0," +                            "'Sender':" +                            "{" +                            "'Company':'LV','Name':'Taylor','Mobile':'15018442396','ProvinceName':'上海','CityName':'上海','ExpAreaName':'青浦区','Address':'明珠路73号'}," +                            "'Receiver':" +                            "{" +                            "'Company':'GCCUI','Name':'Yann','Mobile':'15018442396','ProvinceName':'北京','CityName':'北京','ExpAreaName':'朝阳区','Address':'三里屯街道雅秀大厦'}," +                            "'Commodity':" +                            "[{" +                            "'GoodsName':'鞋子','Goodsquantity':1,'GoodsWeight':1.0}]," +                            "'Weight':1.0," +                            "'Quantity':1," +                            "'Volume':0.0," +                            "'Remark':'小心轻放'}";

    Map<String, String> params = new HashMap<String, String>();
    params.put("RequestData", urlEncoder(requestData, "UTF-8"));
    params.put("EBusinessID", EBusinessID);
    params.put("RequestType", "1008");
    String dataSign=encrypt(requestData, AppKey, "UTF-8");
    params.put("DataSign", urlEncoder(dataSign, "UTF-8"));
    params.put("DataType", "2");

    String result=sendPost(ReqURL, params);

    //根据公司业务处理返回的信息......
    return result;
}

/**
 * MD5加密
 * @param str 内容
 * @param charset 编码方式
 * @throws Exception
 */
@SuppressWarnings("unused")
private String MD5(String str, String charset) throws Exception {
    MessageDigest md = MessageDigest.getInstance("MD5");
    md.update(str.getBytes(charset));
    byte[] result = md.digest();
    StringBuffer sb = new StringBuffer(32);    for (int i = 0; i < result.length; i++) {
        int val = result[i] & 0xff;        if (val <= 0xf) {
            sb.append("0");
        }
        sb.append(Integer.toHexString(val));
    }    return sb.toString().toLowerCase();
}

/**
 * base64编码
 * @param str 内容
 * @param charset 编码方式
 * @throws UnsupportedEncodingException
 */
private String base64(String str, String charset) throws UnsupportedEncodingException{
    String encoded = base64Encode(str.getBytes(charset));   return encoded;
}

@SuppressWarnings("unused")
private String urlEncoder(String str, String charset) throws UnsupportedEncodingException{
    String result = URLEncoder.encode(str, charset);    return result;
}

/**
 * 电商Sign签名生成
 * @param content 内容
 * @param keyValue Appkey
 * @param charset 编码方式
 * @throws UnsupportedEncodingException ,Exception
 * @return DataSign签名
 */
@SuppressWarnings("unused")
private String encrypt (String content, String keyValue, String charset) throws UnsupportedEncodingException, Exception
{   if (keyValue != null)
    {       return base64(MD5(content + keyValue, charset), charset);
    }   return base64(MD5(content, charset), charset);
}

 /**
 * 向指定 URL 发送POST方法的请求
 * @param url 发送请求的 URL
 * @param params 请求的参数集合
 * @return 远程资源的响应结果
 */
@SuppressWarnings("unused")
private String sendPost(String url, Map<String, String> params) {
    OutputStreamWriter out = null;
    BufferedReader in = null;
    StringBuilder result = new StringBuilder();
    try {
        URL realUrl = new URL(url);
        HttpURLConnection conn =(HttpURLConnection) realUrl.openConnection();
        // 发送POST请求必须设置如下两行
        conn.setDoOutput(true);
        conn.setDoInput(true);
        // POST方法
        conn.setRequestMethod("POST");
        // 设置通用的请求属性
        conn.setRequestProperty("accept", "*/*");
        conn.setRequestProperty("connection", "Keep-Alive");
        conn.setRequestProperty("user-agent",                "Mozilla/4.0 (compatible; MSIE 6.0; Windows NT 5.1;SV1)");
        conn.setRequestProperty("Content-Type", "application/x-www-form-urlencoded");
        conn.connect();
        // 获取URLConnection对象对应的输出流
        out = new OutputStreamWriter(conn.getOutputStream(), "UTF-8");
        // 发送请求参数
        if (params != null) {
              StringBuilder param = new StringBuilder();
              for (Map.Entry<String, String> entry : params.entrySet()) {               if(param.length()>0){
                      param.append("&");
                  }
                  param.append(entry.getKey());
                  param.append("=");
                  param.append(entry.getValue());
                  System.out.println(entry.getKey()+":"+entry.getValue());
              }
              System.out.println("param:"+param.toString());
              out.write(param.toString());
        }
        // flush输出流的缓冲
        out.flush();
        // 定义BufferedReader输入流来读取URL的响应        in = new BufferedReader(
                new InputStreamReader(conn.getInputStream(), "UTF-8"));
        String line;        while ((line = in.readLine()) != null) {
            result.append(line);
        }
    } catch (Exception e) {
        e.printStackTrace();
    }
    //使用finally块来关闭输出流、输入流
    finally{
        try{            if(out!=null){
                out.close();
            }            if(in!=null){
                in.close();
            }
        }
        catch(IOException ex){
            ex.printStackTrace();
        }
    }    return result.toString();
}

private static char[] base64EncodeChars = new char[] {
        'A', 'B', 'C', 'D', 'E', 'F', 'G', 'H',
        'I', 'J', 'K', 'L', 'M', 'N', 'O', 'P',
        'Q', 'R', 'S', 'T', 'U', 'V', 'W', 'X',
        'Y', 'Z', 'a', 'b', 'c', 'd', 'e', 'f',
        'g', 'h', 'i', 'j', 'k', 'l', 'm', 'n',
        'o', 'p', 'q', 'r', 's', 't', 'u', 'v',
        'w', 'x', 'y', 'z', '0', '1', '2', '3',
        '4', '5', '6', '7', '8', '9', '+', '/' };

public static String base64Encode(byte[] data) {
    StringBuffer sb = new StringBuffer();
    int len = data.length;
    int i = 0;
    int b1, b2, b3;
    while (i < len) {
        b1 = data[i++] & 0xff;
        if (i == len)
        {
            sb.append(base64EncodeChars[b1 >>> 2]);
            sb.append(base64EncodeChars[(b1 & 0x3) << 4]);
            sb.append("==");
            break;
        }
        b2 = data[i++] & 0xff;
        if (i == len)
        {
            sb.append(base64EncodeChars[b1 >>> 2]);
            sb.append(base64EncodeChars[((b1 & 0x03) << 4) | ((b2 & 0xf0) >>> 4)]);
            sb.append(base64EncodeChars[(b2 & 0x0f) << 2]);
            sb.append("=");
            break;
        }
        b3 = data[i++] & 0xff;
        sb.append(base64EncodeChars[b1 >>> 2]);
        sb.append(base64EncodeChars[((b1 & 0x03) << 4) | ((b2 & 0xf0) >>> 4)]);
        sb.append(base64EncodeChars[((b2 & 0x0f) << 2) | ((b3 & 0xc0) >>> 6)]);
        sb.append(base64EncodeChars[b3 & 0x3f]);
    }
    return sb.toString();
}
