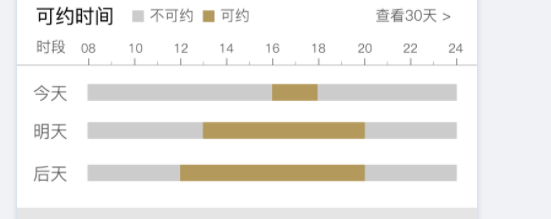

这会儿开发者工具抽风，没法发出来了。。直接贴代码吧

js:
const app = getApp()

Page({
  data: {
    test: [1, 2, 3],
    start: 6,
    end: 24,
    list: [
      {
        label: "今天",
        values: [7, 8, 9, 20, 21]
      },
      {
        label: "昨天",
        values: [10, 11, 12, 13, 14]
      },
    ]
  },
})

wxml:
<wxs module="util">
  function hasValue(values, value) {
    return values.indexOf(value) != -1
  }
  module.exports.hasValue = hasValue
</wxs>
<view class="title-column">
  <view class="title">时段</view>
  <view class="mark" wx:for="{{end-start+1}}" wx:key="$this">
    <view class="mark-start">
      <view class="mark-label">{{item+start}}</view>
      <view class="mark-line"></view>
    </view>
  </view>
</view>
<view class="value-column" wx:for="{{list}}" wx:key="label">
  <view class="title">{{item.label}}</view>
  <view class="value {{util.hasValue(item.values, hour+start)?'has-value':'not-has-value'}}" wx:for="{{end-start+1}}" wx:for-item="hour" wx:key="$this">
  </view>
</view>

wxss:
.title-column {
  display: flex;
  height: 60rpx;
  line-height: 60rpx;
  font-size: 18rpx;
  border-bottom: 1px solid #333;
}
.title {
  width: 100rpx;
  flex-shrink: 0;
  text-align: center;
}
.mark {
  flex: 1 0 0;
  position: relative;
}
.mark-start {
  position: absolute;
  left: 0;
  width: 0;
  display: flex;
  flex-direction: column;
  align-items: center;
}
.mark-line {
  width: 1px;
  height: 4px;
  background-color: #333;
  position: absolute;
  bottom: 0;
}
.mark:nth-child(2n+1) .mark-label {
  opacity: 0;
}
.mark:nth-child(2n+1) .mark-line {
  height: 2px;
}
.value-column {
  display: flex;
  align-items: center;
  height: 40rpx;
  line-height: 40rpx;
  font-size: 18rpx;
}
.value {
  flex: 1 0 0;
  height: 30rpx;
}
.has-value {
  background-color: #aaa;
}
.not-has-value {
  background-color: red;
}
.value:last-child {
  background-color: transparent;
}

查看你的历史代码

自己用CSS也可以写一套，不难
