微信对话开放平台小程序插件

微信对话开放平台小程序插件

微信对话开放平台是以对话交互为核心, 为有客服需求的个人、企业和组织提供智能业务服务与用户管理能力的技能配置平台,

技能开发者可利用我们提供的工具自主完成客服机器人的搭建。此小程序插件为小程序开发者提供快速对接微信AI语意的能力。

微信对话开放平台小程序插件,提供两种调用方式,一种是有UI组件式调用,另一种是无UI
功能接口调用。

1.插件配置

请在 微信对话开放平台 上获得插件所需appid

在小程序 app.json 中 配置, 小程序插件id是 wx8c631f7e9f2465e1, 请使用最新稳定版本

{
  "pages": [
    "pages/index/index"
  ],
  "plugins": {
    "chatbot": {
      "version": "1.1.1",
      "provider": "wx8c631f7e9f2465e1"
    }
  },
  "requiredBackgroundModes": [
    "audio"
  ],
  "sitemapLocation": "sitemap.json"
}
当使用有UI版本时,需要额外使用WechatSI组件, 只使用接口不使用UI时,使用上面的配置就可以了
{
  "pages": [
    "pages/index/index",
    "pages/newsPage/newsPage",
    "pages/common/common"
  ],
  "plugins": {
    "myPlugin": {
      "version": "1.1.1",
      "provider": "wx8c631f7e9f2465e1"
    },
    "WechatSI": {
      "version": "0.3.1",
      "provider": "wx069ba97219f66d99"
    }
  },
  "requiredBackgroundModes": ["audio"],
  "sitemapLocation": "sitemap.json"
}

2. 无UI(只获取NLU结果), 直接调用插件接口

代码中所示appid:P5Ot9PHJDechCYqDFAW1AiK6OtG3Ja 为示例账户,正式产品内使用请到
微信对话开放平台 申请账户,然后到

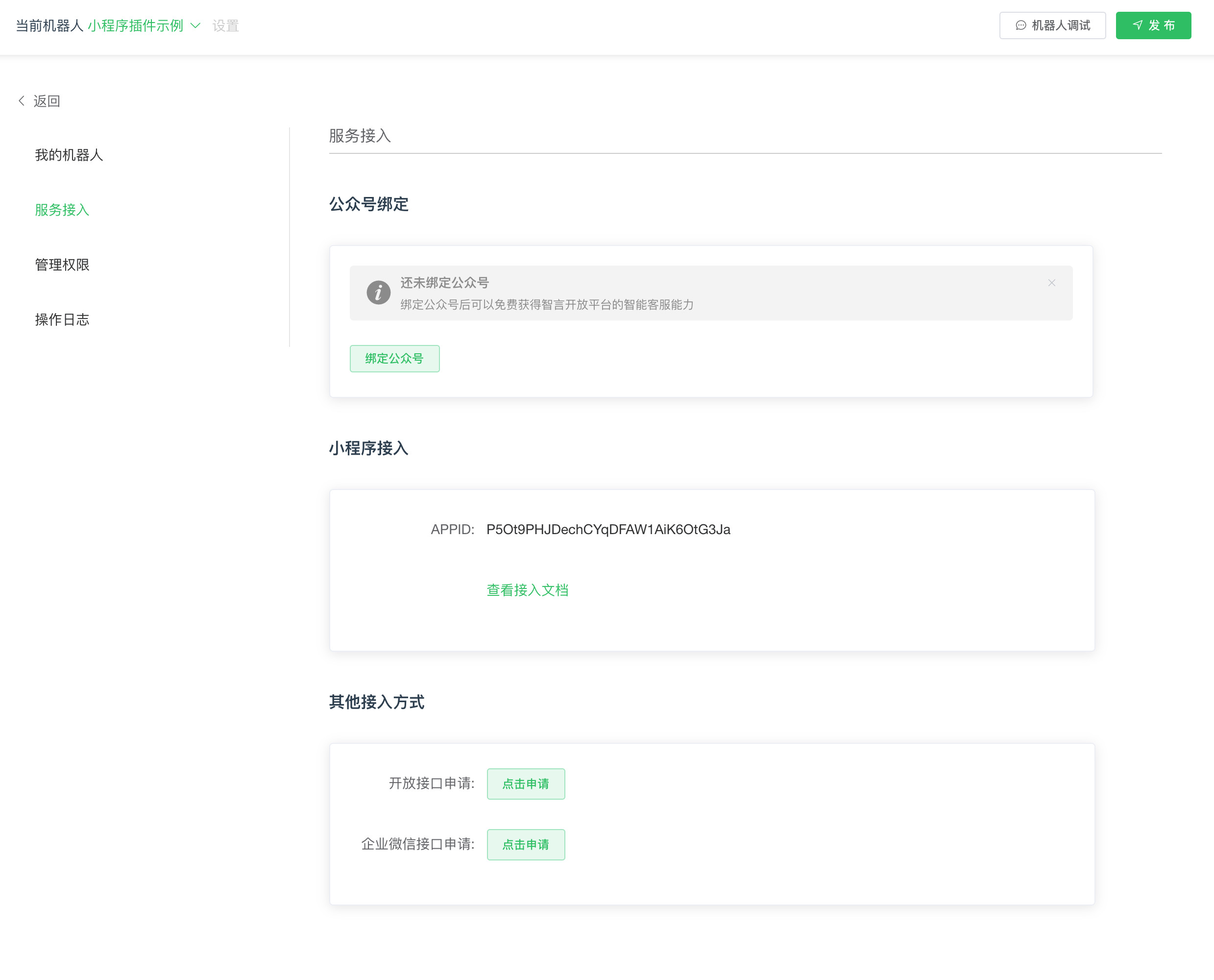

设置-服务接入 查看对应的小程序ID

2.1 组件初始化

var plugin = requirePlugin("chatbot");

App({
  onLaunch: function() {
    console.log(plugin, "+++");
    plugin.init({
        appid: "P5Ot9PHJDechCYqDFAW1AiK6OtG3Ja", //小程序示例账户,仅供学习和参考
        openid: "",//用户的openid,非必填,建议传递该参数
        success: () => {}, //非必填
        fail: error => {} //非必填
    });
  }
});

2.2 发送query

plugin.send({
  query: "你好",
  success: res => {
    console.log(res);
  },
  fail: error => {}
});

2.3 动态设置guideList

从版本 1.1.0 开始,支持根据上下文,随时修改用户提示语的方法
    plugin.setGuideList(['内容', '内容'])


2.4 动态设置textToSpeech

从版本 1.1.0 开始,支持根据上下文,随时修改是否打开语音播报
    plugin.setTextToSpeech(false)


2.5 动态设置欢迎语

从版本 1.1.0 开始,支持动态修改欢迎语
    plugin.setWelcome("您好,请问需要什么帮助?")


2.6 动态设置聊天背景

从版本 1.1.0 开始,支持动态设置聊天背景
    plugin.setBackground("rgba(247,251,252,1)")


2.7 动态控制UI组件,发送消息、开始录音、结束录音

从版本 1.1.0 开始,支持获取对话UI组件, 获取ui组件后可以访问到inputVoiceStart、 inputVoiceEnd 、send 三个UI方法
    const chat = plugin.getChatComponent();


    //用户需要开始语音输入的时候需要触发的事件
    chat.inputVoiceStart();

    //用户需要结束语音输入的时候需要触发的事件
    chat.inputVoiceEnd();

    //用户需要发送消息时需要触发的事件
    chat.send("你好!");

2.5 NLU结果

{
  "ans_node_id": 6666,
  "ans_node_name": "天气服务",
  "answer": "北京今天小雨,温度18到29度,当前温度27度,空气质量轻度污染,今天有雨,略微偏热,注意衣物变化。",
  "answer_open": 1,
  "answer_type": "text",
  "article": "",
  "bid_stat": {
    "curr_time": "20190826-16:34:56",
    "err_msg": "",
    "latest_time": "20190826-16:34:56",
    "latest_valid": true,
    "up_ret": 0
  },
  "confidence": 1,
  "create_time": "1566810973035",
  "dialog_status": "COMPLETE",
  "from_user_name": "o9U-85tEZToQxIF8ht6o-KkagxO0",
  "intent_confirm_status": "",
  "list_options": false,
  "msg": [
    {
      "ans_node_id": 6666,
      "ans_node_name": "天气服务",
      "article": "",
      "confidence": 1,
      "content": "北京今天小雨,温度18到29度,当前温度27度,空气质量轻度污染,今天有雨,略微偏热,注意衣物变化。",
      "debug_info": "",
      "list_options": false,
      "msg_type": "text",
      "resp_title": "天气服务",
      "status": "CONTEXT_FAQ"
    }
  ],
  "ret": 0,
  "skill_id": "",
  "skill_type": "",
  "slot_info": [
    {
      "date": "{\"type\":\"DT_ORI\",\"date_ori\":\"今天\",\"date\":\"2019-08-26\",\"date_lunar\":\"2019-08-26\",\"week\":\"1\",\"slot_content_type\":\"2\",\"modify_times\":\"0\"}"
    },
    {
      "from_loc": "{\"type\":\"LOC_CHINA_CITY\",\"country\":\"中国\",\"city\":\"北京\",\"city_simple\":\"北京\",\"loc_ori\":\"北京\",\"slot_content_type\":\"2\",\"modify_times\":\"1\"}"
    }
  ],
  "slots_info": [
    {
      "confirm_status": "NONE",
      "end": 0,
      "entity_type": "",
      "norm": "2019-08-26",
      "norm_detail": "",
      "slot_name": "date",
      "slot_value": "{\"type\":\"DT_ORI\",\"date_ori\":\"今天\",\"date\":\"2019-08-26\",\"date_lunar\":\"2019-08-26\",\"week\":\"1\",\"slot_content_type\":\"2\",\"modify_times\":\"0\"}",
      "start": 0
    },
    {
      "confirm_status": "NONE",
      "end": 6,
      "entity_type": "LOC_CHINA_CITY",
      "norm": "{\"type\":\"LOC_CHINA_CITY\",\"country\":\"中国\",\"city\":\"北京\",\"city_simple\":\"北京\",\"loc_ori\":\"北京\"}",
      "norm_detail": "",
      "slot_name": "from_loc",
      "slot_value": "{\"type\":\"LOC_CHINA_CITY\",\"country\":\"中国\",\"city\":\"北京\",\"city_simple\":\"北京\",\"loc_ori\":\"北京\",\"slot_content_type\":\"2\",\"modify_times\":\"1\"}",
      "start": 0
    }
  ],
  "status": "CONTEXT_FAQ",
  "title": "天气服务",
  "to_user_name": "10808"
}

3.有UI,直接使用标记组件,无需接口调用

代码中所示appid:P5Ot9PHJDechCYqDFAW1AiK6OtG3Ja 为示例账户,正式产品内使用请到
微信对话开放平台 申请账户,然后到
设置-服务接入 查看对应的小程序ID

3.1 组件初始化

var plugin = requirePlugin("chatbot");

App({
  onLaunch: function() {
    console.log(plugin, "+++");
    plugin.init({
      appid: "P5Ot9PHJDechCYqDFAW1AiK6OtG3Ja", //小程序示例账户,仅供学习和参考
      openid: "", //小程序用户openid,非必填
      success: () => {},
      fail: error => {}
    });
  }
});

3.2 在组件内进行配置

在页面的配置json内进行配置,比如 pages/index/index.json

{
  "usingComponents": {
    "chat": "plugin://chatbot/chat"
  }
}

3.3. 使用组件

chat组件外部必须指定容器, 并设置容器高度, 如果全屏展示, 设置高度为100vh, 如果是自定义导航栏, 设置高度为(100vh - 导航栏的高度)即可.


    自定义导航







  // goBackHome回调 返回上一级页面
  goBackHome: function () {
    wx.navigateBack({
      delta: 1
    })
  }

3.3.1. 每次返回结构后,触发queryCallback

chat组件外部必须指定容器, 并设置容器高度, 如果全屏展示, 设置高度为100vh, 如果是自定义导航栏, 设置高度为(100vh - 导航栏的高度)即可.

  // getQueryCallback回调 返回query与结果
  getQueryCallback: function (e) {
    console.log(e.detail);
  },
  // goBackHome回调 返回上一级页面
  goBackHome: function () {
    wx.navigateBack({
      delta: 1
    })
  }

4 消息组件重写(自定义插件内容的样式)

从版本1.0.7开始支持对小程序内置插件的替换,包括文本消息,天气消息,图片消息,音乐消息,新闻消息和引导消息

从版本1.1.0开始支持generic:operateCard 参数,底部文字和语音输入增加 customoperateCard 自定义复写的功能



{
  "usingComponents": {
    "chat": "plugin://myPlugin/chat",
    "customQueryMessage": "../customQueryMessage/customQueryMessage",
    "customTextMessage": "../customTextMessage/customTextMessage",
    "customWeatherMessage": "../customWeatherMessage/customWeatherMessage",
    "customImageMessage": "../customImageMessage/customImageMessage",
    "customMusicMessage": "../customMusicMessage/customMusicMessage",
    "customNewsMessage": "../customNewsMessage/customNewsMessage",
    "customUnsupportedMessage": "../customUnsupportedMessage/customUnsupportedMessage",
    "customGuideCard": "../customGuideCard/customGuideCard",
    "customOperateCard": "../customOperateCard/customOperateCard"
  }
}

4.1支持覆盖的组件类别:

  1. queryMessage: 用户发出的消息
  2. textMessage: 文本类消息
  3. weatherMessage: 天气类消息
  4. imageMessage: 图片类消息
  5. musicMessage: 音乐类消息
  6. newsMessage: 新闻类消息
  7. unsupportedMessage: 暂未支持类消息
  8. guideCard: 引导消息
  9. operateCard: 底部操作区域(从版本1.1.0开始支持)
以上七种消息中,组件 1-7 会在组件上收到一个properties参数 msg










4.1.1 queryMessage 的 properties 参数 msg的数据结构:

  {
    content: "用户输入的对话内容",
  };

properties 说明:

  properties: {
    msg: Object,
    recording: Boolean
  }

字段类型描述

msgObject

自定义提示语recordingBoolean用户按住语音按钮,开始输入时为true,松开时结束语音输入时为false

4.1.2 textMessage 的 properties 参数 msg的数据结构:

  {
    msg_type: "text",
    content: "机器人对话结果",
    res: res //NLU结果
  };

4.1.3 weatherMessage 的 properties 参数 msg的数据结构:

  {
    cardType: "weather",
    answer: "机器人对话结果",
    docs: Array, //天气结果
    res: res //NLU结果
  };

4.1.4 newsMessage 的 properties 参数 msg的数据结构:

  {
    cardType: "news",
    answer: "机器人对话结果",
    docs: Array, //新闻结果
    res: res //NLU结果
  };

4.1.5 musicMessage 的 properties 参数 msg的数据结构:

  {
    cardType: "voice",
    answer: "",
    docs: Array, //音乐结果
  };

4.1.6 imageMessage 的 properties 参数 msg的数据结构:

  {
    cardType: "image",
    data: Object,
    res: res //NLU结果
  };

4.1.7 unsupportedMessage 的 properties 参数 msg的数据结构:

  {
    cardType: "unsupported",
    data: Object,//自定义的JSON结构
    res: res //NLU结果
  };

4.2 guideCard 的properties参数



properties 说明:

字段类型描述

guideListArray[ "北京天气怎么样", "上海今天有雨吗", "中午吃啥呢", "你知道如何排解压力吗", "法国国土面积是多少", "世界最高峰" ]自定义提示语controlSwiperBoolean用来通知用户引导模块是否应当响应用户点击事件,防止误触发生

bind:chooseGuideEvent当用户点击菜单内选项时,通知机器人用户点击的菜单内容

如果响应用户点击事件

   this.triggerEvent("chooseGuide", "用户点击了菜单的什么内容");


4.3 operateCard 的properties参数



properties 说明:

字段类型描述bind:bindInputEvent用户需要发送消息时需要触发的事件bind:inputVoiceStartEvent用户需要开始语音输入的时候需要触发的事件bind:inputVoiceEndEvent用户需要结束语音输入的时候需要触发的事件bind:backHomeEvent用户需要返回首页时需要触发的事件focusBoolean输入框是否获得焦点

响应用发送消息事件

   this.triggerEvent("bindInput", "用户要发送的消息");

用户按住某一个按钮,需要触发开始录音的事件

   this.triggerEvent("inputVoiceStart");

用户送开某一个按钮,需要触发结束录音的事件

   this.triggerEvent("inputVoiceEnd");

用户点击某一个按钮,需要触发返回首页的事件

   this.triggerEvent("inputVoiceEnd");
发送消息、开启录音、结束录音、也可以通过 plugin.getChatComponent() 方法获取到UI最后,
通过组件方法来实现
    const chat = plugin.getChatComponent();

    //用户需要开始语音输入的时候需要触发的事件
    chat.inputVoiceStart();

    //用户需要结束语音输入的时候需要触发的事件
    chat.inputVoiceEnd();

    //用户需要发送消息时需要触发的事件
    chat.send("你好!");

5. 初始化配置项

    plugin.init({
      appid: "P5Ot9PHJDechCYqDFAW1AiK6OtG3Ja",
      success: () => {},
      fail: error => {},
      guideList: ["您好"],
      textToSpeech: true, //默认为ture打开状态
      welcome: "请问有什么需要帮助?"
      background: "rgba(247,251,252,1)",
      guideCardHeight: 40,
      operateCardHeight: 145,
      history: true,
      historySize: 60,
      navHeight: 0
    });

options 说明:

字段类型是否必填默认值描述appidstring是

微信对话开发平台申请的插件idopenidstring否

微信小程序用户的openedsuccessfunction否

初始化成功的回调failfunction否

初始化失败的回调guideListArray否[ "北京天气怎么样", "上海今天有雨吗", "中午吃啥呢", "你知道如何排解压力吗", "法国国土面积是多少", "世界最高峰" ]自定义提示语textToSpeechArray否true在有UI模式下,将文本回答朗读出来welcomestring否

用户欢迎语backgroundstring否"rgba(247, 251, 252, 1)"聊天背景的styleguideCardHeightnumber否40用户提示区域的高度operateCardHeightnumber否145用户操作区域的高度historyBoolean否true是否开启聊天记录historySizenumber否60聊天记录的最大条数navHeightnumber否0自定义导航栏高度

6. 接入示例:

最后一次编辑于  2020-06-15
