先说下我的开发流程:
先打开这个教程链接:
https://wechat-miniprogram.github.io/minigame-canvas-engine/api/guide.html#%E5%AE%89%E8%A3%85
滑到 快速入门 页签 - 安装
// npm安装方式
npm install minigame-canvas-engine --save
下载好了之后 ,打开安装目录 node_modules 。 找到 minigame-canvas-engine/index.js。
这个就是 集成了 Layout 的库。复制拷贝到我们的子域工程目录。(这里我改掉了库的文件名,从index.js -> minigame-canvas-engine.js)

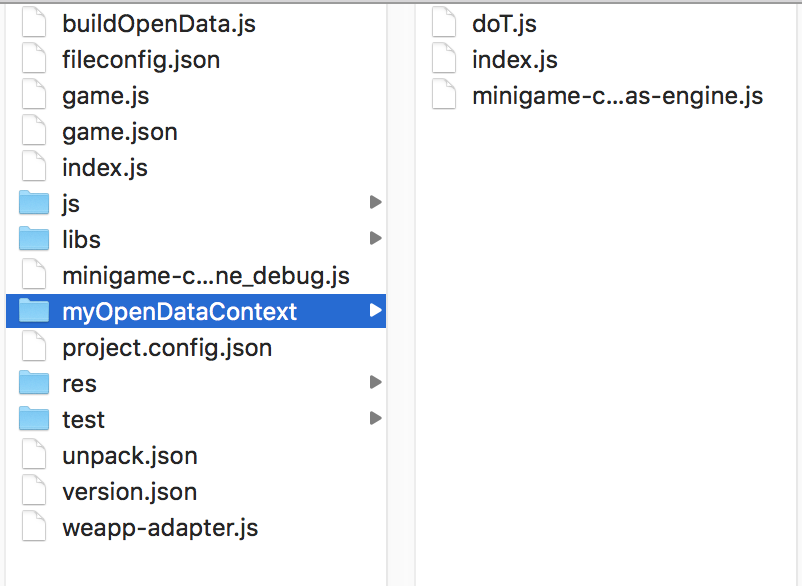

可以看到,这时候我们的子域工程目录结构是这样的 。doT.js(生成xml的脚本)、 index.js(子域启动脚本)、 minigame-canvas-engine.js(Layout库)
贴上doT.js
/**
* xml经过doT.js编译出的模板函数
* 因为小游戏不支持new Function,模板函数只能外部编译
* 可直接拷贝本函数到小游戏中使用
*/
function anonymous(it) {
var out = '<view class="container" id="main"> <view class="header"> <text class="title" value="等级"></text> </view> <view class="rankList"> <scrollview class="list"> ';
var arr1 = it.data;
if (arr1) {
var item, index = -1,
l1 = arr1.length - 1;
while (index < l1) {
item = arr1[index += 1];
out += ' ';
if (index % 2 === 1) {
out += ' <view class="listItem listItemOld"> ';
}
out += ' ';
if (index % 2 === 0) {
out += ' <view class="listItem"> ';
}
out += ' <text class="listItemNum" value="' + (index + 1) + '"></text> <image class="listHeadImg" src="' + (item.avatarUrl) + '"></image> <text class="listItemName" value="' + (item.nickname) + '"></text> <text class="listItemScore" value="' + (item.rankScore) + '"></text> <text class="listScoreUnit" value="分"></text> </view> ';
}
}
out += ' </scrollview> <text class="listTips" value="仅展示前50位好友排名"></text> <view class="listItem selfListItem"> <text class="listItemNum" value="' + (it.selfIndex) + '"></text> <image class="listHeadImg" src="' + (it.self.avatarUrl) + '"></image> <text class="listItemName" value="' + (it.self.nickname) + '"></text> <text class="listItemScore" value="' + (item.rankScore) + '"></text> <text class="listScoreUnit" value="分"></text> </view> </view></view>';
return out;
}
module.exports = {
anonymous: anonymous
}
贴上index.js
var canvas = wx.getSharedCanvas();
var context = canvas.getContext('2d');
var engine = require('minigame-canvas-engine');
var Layout = engine.default;
var doT = require("doT")
let style = {
container: {
width: 720,
height: 1410,
borderRadius: 12,
},
header: {
height: 60,
width: 720,
flexDirection: 'column',
alignItems: 'center',
backgroundColor: '#ffffff',
borderBottomWidth: 0.5,
borderColor: 'rgba(0, 0, 0, 0.3)',
},
title: {
width: 144,
fontSize: 48,
height: 60,
lineHeight: 50,
textAlign: 'center',
fontWeight: 'bold',
borderBottomWidth: 6,
borderColor: '#000000',
verticalAlign: 'middle'
},
rankList: {
width: 720,
height: 300,
backgroundColor: '#ffffff',
},
list: {
width: 720,
height: 300,
backgroundColor: '#ffffff',
marginTop: 0,
},
listItem: {
backgroundColor: '#F7F7F7',
width: 720,
height: 30,
flexDirection: 'row',
alignItems: 'center',
},
listItemOld: {
backgroundColor: '#ffffff',
width: 720,
height: 30,
flexDirection: 'row',
alignItems: 'center',
},
listItemNum: {
fontSize: 32,
fontWeight: 'bold',
lineHeight: 32,
height: 32,
textAlign: 'center',
width: 120,
verticalAlign: 'middle'
},
listHeadImg: {
borderRadius: 6,
width: 30,
height: 30,
},
listItemScore: {
fontSize: 28,
fontWeight: 'bold',
marginLeft: 10,
height: 150,
lineHeight: 150,
width: 10,
textAlign: 'right',
},
listItemName: {
fontSize: 36,
height: 150,
lineHeight: 150,
width: 350,
marginLeft: 30,
},
listScoreUnit: {
opacity: 0.5,
color: '#000000',
fontSize: 20,
height: 150,
lineHeight: 150,
marginLeft: 8,
},
selfListItem: {
width: 720,
height: 30,
borderRadius: 20,
marginTop: 50,
backgroundColor: '#ffffff',
},
listTips: {
width: 720,
height: 90,
lineHeight: 90,
textAlign: 'center',
fontSize: 30,
color: 'rgba(0,0,0,0.5)',
backgroundColor: '#ffffff',
borderRadius: 10,
}
}
function init() {
// 创建mock数据
let item = {
nickname: "zim",
rankScore: 1,
avatarUrl: 'res/layabox.png',
};
let datasource = {
data: [],
selfIndex: 1,
self: item
}
for (let i = 0; i < 20; i++) {
var cp = JSON.parse(JSON.stringify(item));
cp.rankScore = Math.floor(Math.random() * 1000 + 1)
datasource.data.push(cp);
}
// getElementPagePosition为IDE内置函数
let pos = { x: 0, y: 0 };
// 每次初始化之前先执行清理逻辑保证内存不会一直增长
Layout.clear();
let resultText = doT.anonymous(datasource);
// 初始化引擎
Layout.init(resultText, style);
console.log(Layout)
console.log("canvas =", canvas.offsetWidth,canvas.offsetHeight)
// 设置canvas的尺寸和样式的container比例一致
canvas.width = Layout.renderport.width;
canvas.height = Layout.renderport.height;
Layout.updateViewPort({
x: pos.x,
y: pos.y,
width: canvas.width,
height: canvas.height,
});
Layout.layout(context);
}
wx.onMessage(data => {
console.log("game.js -> index.js :", data);
if (data["type"] == "display" || data["type"] == "undisplay") {
return;
}
init();
});
然后问题来了 :
1,文档上的 bitmaptext 会有报错,这边我用text替换了。 具体是如何加载到字体?
out += ' <bitmaptext font="fnt_number-export" class="listItemNu

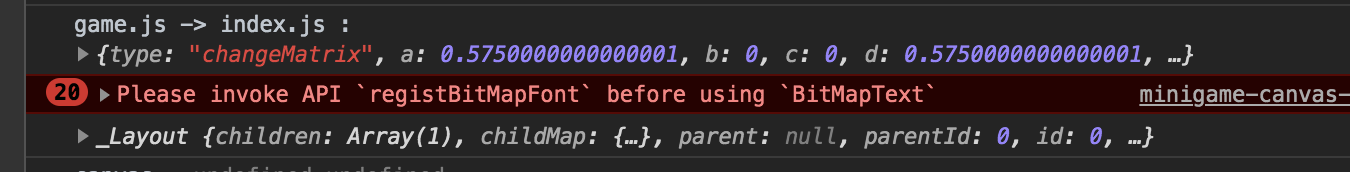

报错信息:
2,文档中的 avatarUrl = https://res.wx.qq.com/wechatgame/product/webpack/userupload/20191119/wegoing.jpeg 头像不显示 ,报错说 不在后台可信域。
求解决方案~
