- 当前 Bug 的表现(可附上截图)

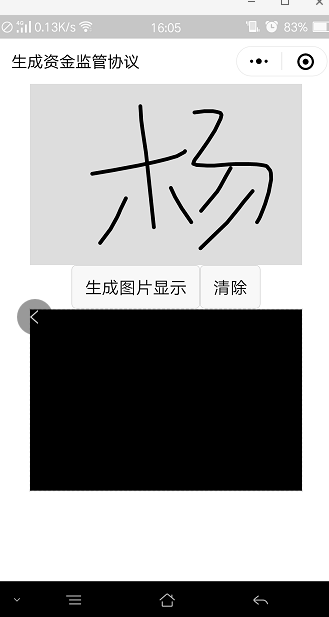

此机型为OPPOR7
- 预期表现

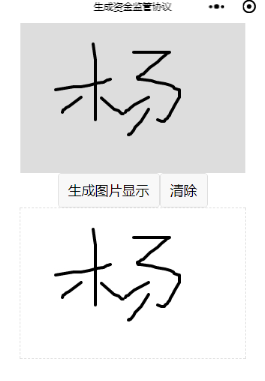

开发工具中和其他机型:
- 复现路径
- 提供一个最简复现 Demo
js:
// pages/supervise/superviseAgreement/superviseAgreement.js
let ctx = null;
let isButtonDown = false;
const arrx = [];
const arry = [];
const arrz = [];
let canvasw = 0;
let canvash = 0;
Page({
/**
* 页面的初始数据
*/
data: {
src: '',
},
/**
* 生命周期函数--监听页面加载
*/
onLoad: function (options) {
// 使用wx.createContext获取绘图上下文context
ctx = wx.createCanvasContext('canvas');
ctx.beginPath();
ctx.setStrokeStyle('#000000');
ctx.setLineWidth(4);
ctx.setLineCap('round');
ctx.setLineJoin('round');
ctx.draw();
},
canvasStart(e){
console.log(e)
isButtonDown = true;
arrz.push(0);
arrx.push(e.changedTouches[0].clientX - e.currentTarget.offsetLeft);
arry.push(e.changedTouches[0].clientY - e.currentTarget.offsetTop);
},
canvasMove(e){
console.log(e)
if(isButtonDown){
arrz.push(1);
arrx.push(e.changedTouches[0].clientX - e.currentTarget.offsetLeft);
arry.push(e.changedTouches[0].clientY - e.currentTarget.offsetTop);
}
for(let i = 0; i < arrx.length; i++){
if(arrz[i] === 0){
ctx.moveTo(arrx[i], arry[i])
}else{
ctx.lineTo(arrx[i],arry[i]);
}
}
// ctx.clearRect(0, 0, canvasw, canvash);
ctx.setStrokeStyle('#000000');
ctx.setLineWidth(4);
ctx.setLineCap('round');
ctx.setLineJoin('round');
ctx.stroke();
ctx.draw(false);
},
canvasEnd(e){
console.log(e)
isButtonDown = false;
},
canvasError(e){
console.log(e.detail.errMsg);
},
canvasSave(){
wx.canvasToTempFilePath({
canvasId: 'canvas',
fileType: 'jpg',
quality: 1,
x: 0,
y: 0,
width: 300,
height: 200,
destWidth: 300,
destHeight: 200,
success: res => {
console.log(res);
this.setData({
src: res.tempFilePath
});
}
});
},
canvasClear(){
arrx.length = 0;
arry.length = 0;
arrz.length = 0;
ctx.draw(false);
},
/**
* 生命周期函数--监听页面初次渲染完成
*/
onReady: function () {
},
/**
* 生命周期函数--监听页面显示
*/
onShow: function () {
},
/**
* 生命周期函数--监听页面隐藏
*/
onHide: function () {
},
/**
* 生命周期函数--监听页面卸载
*/
onUnload: function () {
},
/**
* 页面相关事件处理函数--监听用户下拉动作
*/
onPullDownRefresh: function () {
},
/**
* 页面上拉触底事件的处理函数
*/
onReachBottom: function () {
},
/**
* 用户点击右上角分享
*/
onShareAppMessage: function () {
}
})
wxml:
<view class='superviseAgreementContainer'>
<view class='header'>
<canvas
disable-scroll
canvas-id='canvas'
class='canvas'
bind:touchstart='canvasStart'
bind:touchmove='canvasMove'
bind:touchend='canvasEnd'
bind:touchcancel='canvasEnd'
bind:error='canvasError'
>
</canvas>
</view>
<view class='body'>
<button bind:tap='canvasSave'>生成图片显示</button>
<button bind:tap='canvasClear'>清除</button>
</view>
<view class='footer'>
<image src='{{src}}'></image>
</view>
</view>
wxss:
.superviseAgreementContainer{
height: 100%;
background-color: #ffffff;
display: flex;
flex-direction: column;
align-items: center;
}
.canvas {
width: 100%;
height: 100%;
background-color: #ddd;
margin: 0 auto;
}
.header{
width: 600rpx;
height: 400rpx;
}
.body{
display: flex;
justify-content: start;
}
.footer image{
border: 1rpx dashed #ddd;
width: 600rpx;
height: 400rpx;
}
这里有个bug是安卓下存图默认透明部分会变成黑底,正在修复了
目前可以先在背景手动填充一个灰色矩形来规避
好的,多谢
小哥,那个问题后来是怎么解决的啊?
你好,麻烦提供能复现问题的代码片段(https://developers.weixin.qq.com/miniprogram/dev/devtools/minicode.html)
https://developers.weixin.qq.com/s/qvyZlBmX788o
