wx.onBLECharacteristicValueChange 在安卓无回调

框架类型 问题类型 API/组件名称 终端类型 微信版本 基础库版本
小程序 Bug wx.onBLECharacteristicValueChange 客户端 6.7.3 2.4.0

help,wx.onBLECharacteristicValueChange 在android上无法接受返回值,notify开启是成功的,有趣的是在iOS下面一切正常,问了好多人,又说开启notify之后立即就调用了write会发生问题,尝试了延迟和重发依旧没有任何返回值,下图是测试返回的结果


····························································································································

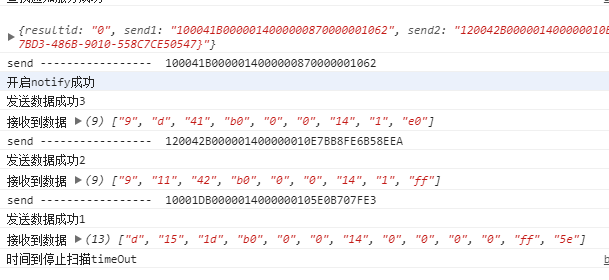

上图是在ios设备的截图,能接收到返回值


··································································································

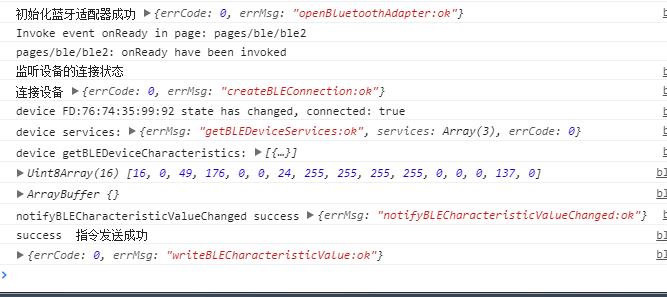

这实在android设备的,没有返回值

···································································································


- 求问技术支持,这问题该如何解决,是否有解决方案,下面贴出我的代码,帮忙看看是不是我写的有问题

Page({

  /** 页面的初始数据 */
  data: {
    deviceId: 'FD:76:74:35:99:92',
    serviceId: '',
    services: [],
    writeCharacteristicsId: ""// 可写特征值uuid
    readCharacteristicsId: "",   // 可读特征值uuid
    notifyCharacteristicsId: "", // 通知特征值uuid
  },

  /** 生命周期函数--监听页面加载 */
  onLoad: function (opt) {
    //初始化蓝牙适配器
    wx.openBluetoothAdapter({
      success: function (res) {
        console.log("初始化蓝牙适配器成功", res);
      },
      fail: function (err) {
        console.log("初始化失败", err)
      }
    })

    //监听蓝牙适配器状态变化事件
    wx.onBluetoothAdapterStateChange(res => {
      console.log("状态变化", res)
    })
  },

  start: function() {
    let that = this;

    console.log('监听设备的连接状态');

    /** 连接设备 */
    wx.createBLEConnection({
      deviceId: that.data.deviceId,
      success: function (res) {
        console.log('连接设备', res);

        /** 监听设备的连接状态 */
        wx.onBLEConnectionStateChanged(function (res) {
          console.log(`device ${res.deviceId} state has changed, connected: ${res.connected}`)
        });

        /** 连接成功,后开始获取设备的服务列表 */
        wx.getBLEDeviceServices({
          deviceId: that.data.deviceId,
          success: function (res) {
            console.log('device services:', res);

            that.setData({ services: res.services, serviceId: res.services[0].uuid }, () => {

              wx.getBLEDeviceCharacteristics({
                deviceId: that.data.deviceId,
                serviceId: that.data.serviceId,
                success: function (res) {
                  console.log('device getBLEDeviceCharacteristics:', res.characteristics);

                  for (var i = 0; i < res.characteristics.length; i++) {
                    if (res.characteristics[i].properties.notify) {
                      that.setData({
                        notifyCharacteristicsId: res.characteristics[i].uuid
                      })
                    }
                    if (res.characteristics[i].properties.write) {
                      that.setData({
                        writeCharacteristicsId: res.characteristics[i].uuid
                      })
                    }
                    if (res.characteristics[i].properties.read) {
                      that.setData({
                        readCharacteristicsId: res.characteristics[i].uuid
                      })
                    }
                  }

                  /** 顺序开发设备特征notifiy */
                  wx.notifyBLECharacteristicValueChanged({
                    deviceId: that.data.deviceId,
                    serviceId: that.data.serviceId,
                    characteristicId: that.data.notifyCharacteristicsId,
                    state: true,
                    success: function (res) {
                      console.log('notifyBLECharacteristicValueChanged success', res);
                    },
                    fail: function (res) { console.log('notifyBLECharacteristicValueChanged fail :', res) },
                    complete: function (res) { }
                  });

                  /** 回调获取 设备发过来的数据 */
                  wx.onBLECharacteristicValueChange(function (res) {
                    console.log('characteristic value comed:', res.value);
                    //{value: ArrayBuffer, deviceId: "D8:00:D2:4F:24:17", serviceId: "ba11f08c-5f14-0b0d-1080-007cbe238851-0x600000460240", characteristicId: "0000cd04-0000-1000-8000-00805f9b34fb-0x60800069fb80"}

                    let buffer = res.value
                    let dataView = new DataView(buffer)
                    let dataResult = []
                    for (let i = 0; i < dataView.byteLength; i++) {
                      dataResult.push(dataView.getUint8(i).toString(16))
                    }
                    const result = dataResult
                    console.log(result);
                  });

                  /** 发送开锁命令 */
                  that.send();

                }, fail: function (res) {
                  console.log(res);
                }
              })

            });
          }
        })
      },
      fail: function (res) {
        console.log('失败', res);
      }
    })
  },

  /** 发送 数据到设备中 */
  send: function () {
    let that = this, hex = '100031B0000018FFFFFFFF0000008900';
    const typedArray = new Uint8Array(hex.match(/[\da-f]{2}/gi).map(function (h) { return parseInt(h, 16) }))
    console.log(typedArray);
    const buffer1 = typedArray.buffer
    console.log(buffer1)

    wx.writeBLECharacteristicValue({
      deviceId: that.data.deviceId,
      serviceId: that.data.serviceId,
      characteristicId: that.data.writeCharacteristicsId,
      value: buffer1,

      success: function (res) {
        console.log("success  指令发送成功");
        console.log(res);

        /** 读取设备 */
        // setTimeout(() => {
        //   wx.readBLECharacteristicValue({
        //     deviceId: that.data.deviceId,
        //     serviceId: that.data.serviceId,
        //     characteristicId: that.data.readCharacteristicsId,
        //     success: function (res) {
        //       console.log('readBLECharacteristicValue:', res);
        //     }
        //   })
        // }, 3000)
      },
      fail: function (res) { console.log(res); }
    })
  },

  /** 生命周期函数--监听页面初次渲染完成 */
  onReady: function () { },

  /** 生命周期函数--监听页面显示 */
  onShow: function () { },

  /** 生命周期函数--监听页面隐藏 */
  onHide: function () { },

  /** 生命周期函数--监听页面卸载, 同时断开蓝牙 */
  onUnload: function () {
    let me = this;
    wx.closeBLEConnection({
      deviceId: me.data.deviceId,
      success: function (res) {
        console.log("蓝牙断开", res)
        me.setData({ deviceId: "", })
      }
    })
  },

})


在线等。

回答关注问题邀请回答
收藏

6 个回答

  • Tummy
    Tummy
    2019-01-08

    我来跟进下这个问题


    我->设置->帮助与反馈->右上角上传日志,并提供微信号与时间点哈。

    --

    按这个方式来份日志?

    2019-01-08
    有用
    回复 15
    • 加菲猫
      加菲猫
      2019-01-08

      是在微信上上传日志吗?已上传了哦

      微信号:bin_garfield 时间点:15:09 - 15:11 分左右

      2019-01-08
      回复
    • Tummy
      Tummy
      2019-01-08回复加菲猫

      特征值属性支持notification和indication两种,一般比较少这样的case,

      Android 小程序对这种情况默认走的都是indication这一种,

      可以通过notify接口加参数 type:notification 先规避掉这个问题。


      ---

      ps:之前也有回复过这样的case,可以先搜索下噢,thx.

      2019-01-08
      回复
    • 加菲猫
      加菲猫
      2019-01-08回复Tummy

      增加过 type:notification 这个参数,然后是一部分命令有返回,大部分没有,我也好无奈,还有其他的解决方案吗

      2019-01-08
      回复
    • 加菲猫
      加菲猫
      2019-01-09回复Tummy

      问题已解决,谢谢管理

      2019-01-09
      回复
    • Tummy
      Tummy
      2019-01-09回复加菲猫

      问题是什么,解决方案是什么呢?

      可以描述一下么..thx

      2019-01-09
      回复
    查看更多(10)
  • 娘娘
    娘娘
    2022-06-17

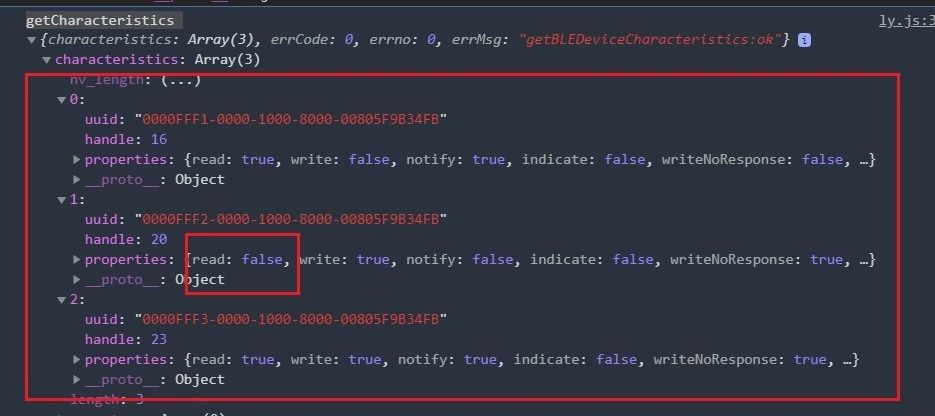

    我知道原因了!!!大家查下自己的getBLEDeviceCharacteristics获取特征值里面的read是false还是true,不走回调肯定是false!那就跟你getBLEDeviceServices获取服务选的uuid有关系了,把返回的数组里的uuid都试一遍!我的试到最后一个read才是true,最后走了回调

    2022-06-17
    有用 1
    回复
  • 2019-07-18

    楼主是怎么解决的呀?

    2019-07-18
    有用
    回复
  • 2019-05-09

    我开发中也出现了这个问题 谢谢楼主的反馈。

    我这边还有一个问题,我看到楼主也是开锁关锁的。

    在 onBLECharacteristicValueChange 我接收不到手动关锁后 发出的蓝牙广播,想问一下楼主关锁这里是怎么做的。

    2019-05-09
    有用
    回复 2
    • 忘
      2019-09-27
      我也遇到这个问题 onBLECharacteristicValueChange点击多次后面会出现接收不到回调,请问怎么解决的哈
      2019-09-27
      回复
    • 柒柒呀ᥬ😏᭄
      柒柒呀ᥬ😏᭄
      2021-05-14
      您好,我也遇到这个问题 onBLECharacteristicValueChange点击多次后面会出现接收不到回调,请问怎么解决的哈
      2021-05-14
      回复
  • 加菲猫
    加菲猫
    2019-01-09

    问题已解决

    2019-01-09
    有用
    回复 1
    • 超
      2019-02-20

      楼主最后怎么解决的啊?能说一下吗?是添加延迟执行回调还是怎么?

      2019-02-20
      回复
  • 啊哈
    啊哈
    2019-01-08

    你可以尝试下 把send()  放在 notifyBLECharacteristicValueChange 成功回调里面,做一点点延时再执行。

    2019-01-08
    有用
    回复 1
    • 加菲猫
      加菲猫
      2019-01-08

      试过了,还是不行

      2019-01-08
      回复
