Contents
1. Meeting/Performance Tickets
1.1 Creating Meeting Tickets 1.2 Updating Meeting Tickets
2.1 Creating Attractions Tickets
# 1. Meeting/Performance Tickets
Supports developers to call the API for the creation of meeting/performance tickets.
Calls the ticket update API to update the seat, entrance, and other information to the ticket after the user receives the ticket.
# 1.1 Creating Meeting Tickets
API Request Format
HTTP request method: POSTURL:https://api.weixin.qq.com/card/create?access_token=ACCESS_TOKEN
Parameters
Parameter | Required | Description |
---|---|---|
access_token | Yes | The credential for API call |
POST data | Yes | JSON data |
POST data example:
{ "card": {
"card_type": "MEETING_TICKET",
"meeting_ticket": {
"base_info": {
"logo_url": "http://mmbiz.qpic.cn/mmbiz/iaL1LJM1mF9aRKPZJkmG8xXhiaHqkKSVMMWeN3hLut7X7hicFNjakmxibMLGWpXrEXB33367o7zHN0CwngnQY7zb7g/0",
"brand_name":"Ticketing office",
"code_type":"CODE_TYPE_TEXT",
"title": "XXMeeting",
"color": "Color010",
"notice": "Present this ticket to the ticket inspector at the time of use",
"service_phone": "020-88888888",
"description": "Make sure to enter on time",
"date_info": {
"type": 1,
"begin_timestamp": 1397577600 ,
"end_timestamp": 1422724261
},
"sku": {
"quantity": 50000000
},
"get_limit": 3,
"use_custom_code": false,
"bind_openid": false,
"can_share": true,
"can_give_friend": true,
"location_id_list" : [123, 12321, 345345],
"custom_url_name": "View more",
"custom_url": "http://www.qq.com",
"custom_url_sub_title": "6 Chinese characterstips",
},
"meeting_detail": "Meeting time: xxx;Venue: xxx "}
}
}
Fields dedicated to meeting tickets:
Parameter | Required | Type | Example | Description |
---|---|---|---|---|
card_type | Yes | string(24) | MEETING_TICKET | Meeting ticket type. |
base_info | Yes | JSON structure | See the example above. | Basic coupon data (applicable to all coupons). See the table below. |
meeting_detail | Yes | string(3072) | The meeting is held on May 10, 2015 in Guangzhou, at xxxx. | Meeting details. |
map_url | No | string(128) | xxx.com | Venue map. |
Base_info:
Parameter | Required | Type | Example | Description |
---|---|---|---|---|
logo_url | Yes | string(128) | http://mmbiz.qpic.cn/ | Merchant logo of coupon. Recommended dimension 300*300 pixels. |
code_type | Yes | string(16) | CODE_TYPE_TEXT | Code display type "CODE_TYPE_TEXT", text; "CODE_TYPE_BARCODE", barcode; "CODE_TYPE_QRCODE", QR code; "CODE_TYPE_ONLY_QRCODE", QR code with no code display; "CODE_TYPE_ONLY_BARCODE", barcode with no code display. |
brand_name | Yes | string (36) | xx ticketing office | Merchant name, up to 12 Chinese characters. |
title | Yes | string (27) | xx meeting ticket | Coupon title, with a maximum length of 9 Chinese characters (18 English characters). A combination of coupon attributes, service items and amount is recommended. |
color | Yes | string (16) | Color010 | Coupon color. Enter a value between Color010 and Color100. |
notice | Yes | string (48) | Present the QR code for coupon redemption | Coupon usage tip, with a maximum length of 16 Chinese characters (32 English characters). |
description | Yes | string (3072) | Using with other coupons is not allowed/nAsk the staff for an invoice for the group purchase. | Coupon usage instructions, with a maximum length of 1024 Chinese characters (2048 English characters). |
sku | Yes | JSON structure | See example above | Product information |
quantity | Yes | int | 100000 | Coupon inventory. Maximum is 100,000,000. Cannot be 0. |
date_info | Yes | JSON structure | See example above. | Information of coupon validity period. |
type | Yes | int | 1 | Coupon validity type. 1: a fixed time range; 2: a fixed number of days (after coupon receipt). |
begin_timestamp | No | unsigned int | 14300000 | Start time of validity period. This field only takes effect when type = 1. It is expressed as a Unix timestamp, i.e. the number of seconds that have elapsed since 00:00:00 1/1/1970 (UTC+8). |
end_timestamp | No | unsigned int | 15300000 | End time of validity period. This field only takes effect when type = 1. It is recommended to set the filed value to 23:59:59 on the expiration data. (UTC+8, in sec). |
fixed_term | No | int | 0 | Indicates the number of days during which the received coupon is valid, and only takes effect when type = 2. Enter 0 if the coupon becomes valid on the day of its receipt. |
fixed_begin_term | No | int | 15 | Indicates the number of days after which the received couponbecomes valid, and only takes effect when type = 2. |
use_custom_code | No | bool | true | Whether to use custom code. Enter "true" or "false" (default). Generally, developers owning a coupon code system select custom codes and incorporate the coupons in the coupons for issuance. |
bind_openid | No | bool | true | Whether to specify the users to receive the coupons. Enter "true" or "false" (default). |
service_phone | No | string(24) | 40012234 | Customer service number |
location_id_list | No | array | 1234, 2312 | ID of store location. Obtain the value by calling the POI Store Management API. |
source | No | string (36) | Dianping | Third-party source name, such as TravelGo, Dianping. |
custom_url_name | No | string (15) | Use Now | Title of the custom external redirect link. |
custom_url | No | string (128) | "xxxx.com" | Custom redirect URL |
custom_url_sub_title | No | string (18) | More surprise | Words shown to the right of the entry button |
promotion_url_name | No | string (15) | Product Overview | Title of custom entry button to promotional page. |
promotion_url | No | string (128) | XXXX.com | URL of external redirect link |
promotion_url_sub_title | No | string (18) | Big Offers! | Words shown to the right of the entry button to the promotional page |
get_limit | No | int | 1 | Maximum number of coupons that each user can claim |
can_share | No | bool | false | Indicates whether the coupon claiming page is sharable. |
can_give_friend | No | bool | false | Indicates whether the coupon is transferable. |
Response Description
Example:
{
"errcode":0,
"errmsg":"ok",
"card_id":"p1Pj9jr90_SQRaVqYI239Ka1erkI"
}
Parameter | Description |
---|---|
errcode | Error code. 0 indicates a successful request. |
errmsg | Error message |
card_id | Coupon ID |
# 1.2 Updating Meeting Tickets

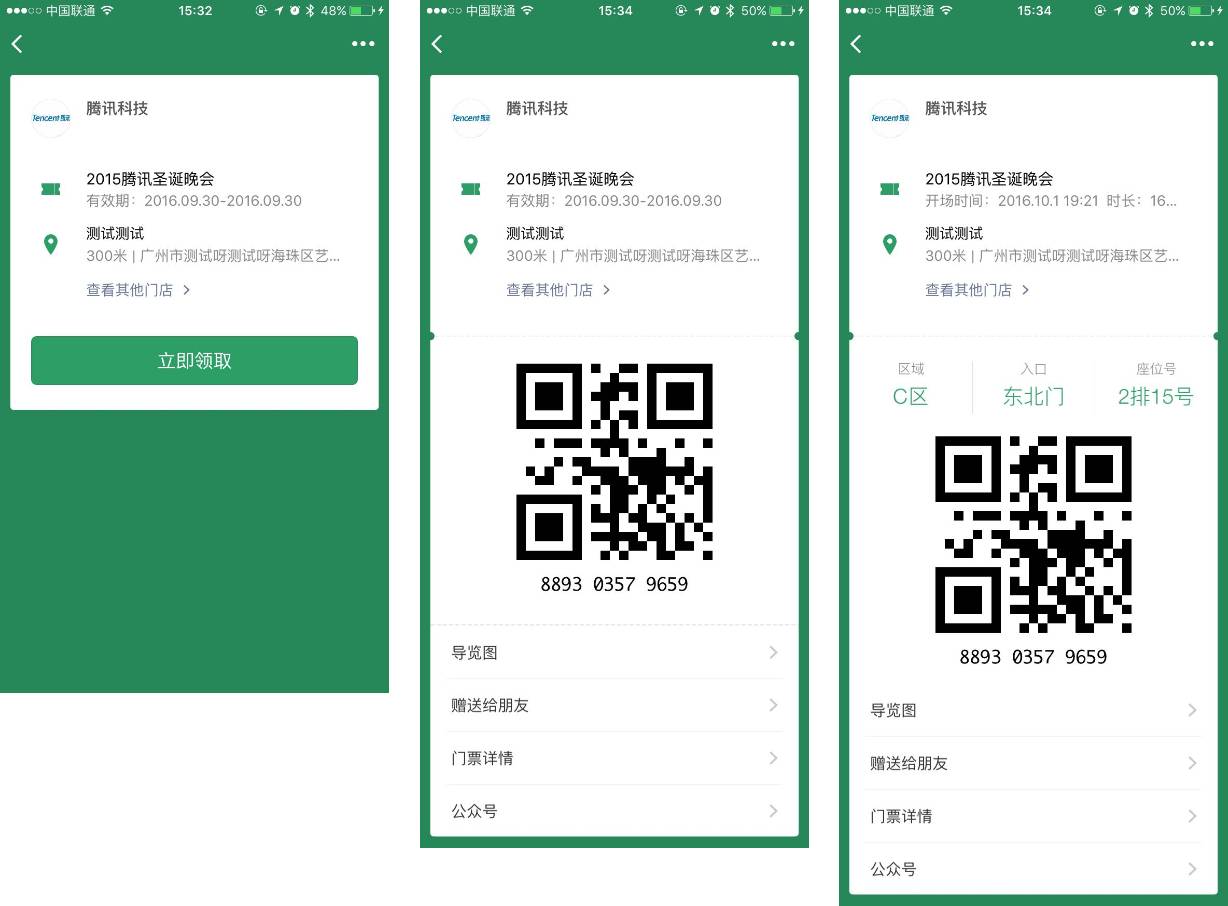

Calls the "Update Meeting Ticket" API to update the time, area, seat, and other entry information.
API Request Format
HTTP request method: POSTURL:https://api.weixin.qq.com/card/meetingticket/updateuser?access_token=TOKEN
Parameters
Parameter | Required | Description |
---|---|---|
access_token | Yes | The credential for API call |
POST data | Yes | JSON data |
{
"code": "717523732898",
"card_id": "pXch-jvdwkJjY7evUFV-sGsoMl7A",
"zone" : Area "C",
"entrance" : "Northeast gate",
"seat_number" : Row "2 Seat 15"
}
Parameter | Required | Type | Example | Description |
---|---|---|---|---|
code | Yes | string(20) | 1231123 | Coupon code. |
card_id | No | string (32) | pXch-jvdwkJjY7evUFV-sGsoMl7A | Serial number of the ticket to be updated. card_id is required if use_custom_code is true when the coupon is generated. |
begin_time | No | unsigned int | 1433432201 | Beginning time. Weixin will send a notice through the "A-Hong Tickets" Official Account or the service notification two hours before the event in the Unix timestamp format. |
end_time | No | unsigned int | 1433432401 | Ending time of the event in the Unix timestamp format. |
zone | Yes | string (12) | Area C | Area. |
entrance | Yes | string (12) | Gate 3 | Entrance. |
seat_number | Yes | string (12) | Row 2 Seat 15 | Seat No. |
Response Description
Example:
{
"errcode":0,
"errmsg":"ok"
}
Parameter | Description |
---|---|
errcode | Error code. 0 indicates a successful request. |
errmsg | Error message |
# 2. Attractions Tickets
# 2.1 Creating Attractions Tickets
API Request Format
httpRequest method: POSTURL: https://api.weixin.qq.com/card/create?access_token=ACCESS_TOKEN
Parameters
Parameter | Required | Description |
---|---|---|
access_token | Yes | The credential for API call |
POST data | Yes | JSON data |
{ "card": {
"card_type": "SCENIC_TICKET",
"scenic_ticket": {
"base_info": {
},
"ticket_class": "Full-day ticket"
}
}
}
Fields dedicated to attractions tickets:
Parameter | Required | Type | Example | Description |
---|---|---|---|---|
card_type | Yes | string(24) | SCENIC_TICKET | Attractions ticket type. |
base_info | Yes | SON structure | See the example above. | Basic coupon data (applicable to all coupons). See the table below. |
ticket_class | Yes | string(3072) | Weekday full-day ticket | Ticket type, such as weekday full-day ticket and pass. |
guide_url | No | string(128) | xxx.com | The URL of the guide map. |
Base_info fields (For details, see "1.1 Fields of the Creating Meeting Ticket" API)
Response Description
{
"errcode":0,
"errmsg":"ok",
"card_id":"p1Pj9jr90_SQRaVqYI239Ka1erkI"
}
Parameter | Description |
---|---|
errcode | Error code. 0 indicates a successful request. |
errmsg | Error message |
card_id | Coupon ID |
# 3 Movie Tickets
There are two types for movie tickets and coupons:
Movie ticket coupon, a group-purchase coupon.
Movie ticket with seat selected. The ticket is time-sensitive and specific with movie, time, and seat all determined when being purchased. This type of tickets are the movie tickets mentioned in documentation.
# 3.1 Creating Movie Tickets
API Request Format
HTTP request method: POSTURL:https://api.weixin.qq.com/card/create?access_token=ACCESS_TOKEN
Parameters
Parameter | Required | Description |
---|---|---|
access_token | Yes | The credential for API call |
POST data | Yes | JSON data |
{ "card": {
"card_type": "MOVIE_TICKET",
"movie_ticket": {
"base_info": {
},
"detail": "Movie name: xxx, synopsis: xxx"
}
}
}
Fields dedicated to movie tickets:
Parameter | Required | Type | Example | Description |
---|---|---|---|---|
card_type | Yes | string(24) | MOVIE_TICKET | Movie ticket type. |
base_info | Yes | JSON structure | See the example above. | Basic coupon data (applicable to all coupons). See the table below. |
detail | Yes | string(3072) | Movie name: xxx, synopsis: xxx. | Movie ticket details. |
Base_info fields (For details, see 1.1 Fields of the "Create Meeting Ticket" API )
# 3.2 Updating Movie Tickets
Calls the "Update Movie Ticket" API to update the movie and seat information after the user claims the ticket.
API Request Format
HTTP request method: POSTURL:https://api.weixin.qq.com/card/movieticket/updateuser?access_token=TOKEN
Parameters
Parameter | Required | Description |
---|---|---|
access_token | Yes | The credential for API call |
POST data | Yes | JSON data |
{
"code" : "277217129962",
"card_id": "p1Pj9jr90_SQRaVqYI239Ka1erkI",
"ticket_class": "4D",
"show_time": 1408493192,
"duration":120,
"screening_room": Hall "5",
"seat_number": [ Row "5 Seat 14" , Row "5 Seat 15" ]
}
Parameter | Required | Type | Example | Description |
---|---|---|---|---|
code | Yes | string(20) | 1231123 | Coupon code. |
card_id | Yes | string (32) | Enjoy a 20% discount on Platinum member cards. | Serial number of the ticket to be updated. card_id is required if use_custom_code is true when the coupon is generated. |
ticket_class | Yes | string (12) | 2D | Movie type, such as 2D and 3D. |
screening_room | No | string (12) | Hall A | Hall information of the movie. |
seat_number | No | string (12) | Row 5 Seat 10 | Seat No. |
show_time | Yes | unsigned int | 14300000 | Movie showtime in the Unix timestamp format. |
duration | Yes | int | 120 | Movie duration. Enter an integer. |
Response Description
Example:
{ "errcode":0, "errmsg":"ok"}
Parameter | Description |
---|---|
errcode | Error code. 0 indicates a successful request. |
errmsg | Error message |
# 4. Air Tickets
Compared to other coupons, air tickets are more time-sensitive and specific, so the ticket comes into effect directly without approval by Weixin. Air tickets are mainly used in two scenes:
The ticket is added to Cards & Offers directly after being purchased through Weixin. The boarding pass can be processed online from Cards & Offers during check-in time.
The ticket is added to Weixin Cards & Offers after the passenger completes check-in via the Official Account of a Weixin merchant (typically airlines).
Scene 1: After the user clicks "Add to Cards & Offers" on the merchant's HTML5 page, the merchant will call the API to create the ticket with the user information, and issue the ticket after obtaining a card_id. During the check-in period, the user can click the URL specified by the merchant to check in the boarding pass online. After that, the merchant will call the "Update Air Ticket" API to sync the check-in information.
Scene 2: After the user clicks the JS API on the merchant's HTML5 page, the merchant will call the API to generate the ticket with the user information, and issue the ticket after obtaining a card_id. The merchant will immediately update the air ticket API to sync the check-in information.
# 4.1 Creating Air Tickets
Air ticket example
API Request Format
HTTPSRequest method: POSTURL:https://api.weixin.qq.com/card/create?access_token=ACCESS_TOKEN
Parameters
Parameter | Required | Description |
---|---|---|
access_token | Yes | The credential for API call |
POST data | Yes | JSON data |
{"card": {
"card_type": "BOARDING_PASS",
"boarding_pass": {
"base_info": {
xxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
},
"from": "Chengdu",
"to": "Guangzhou",
"flight": "CE123",
"departure_time": "1434507901",
"landing_time": "1434909901",
"air_model": "AirbusA320"
}
}
}
Fields dedicated to air ticket:
Parameter | Required | Type | Example | Description |
---|---|---|---|---|
card_type | Yes | string(24) | BOARDING_PASS | Air ticket type. |
base_info | Yes | JSON structure | See the example. | Basic coupon data. See the table below. This field is applicable to all coupons. |
from | Yes | string(54) | Chengdu | Origin, up to 18 Chinese characters. |
to | Yes | string(54) | Guangzhou | Destination, up to 18 Chinese characters. |
flight | Yes | string(24) | CE123 | Flight |
gate | Yes | string(12) | A11 | Gate, up to 4 Chinese characters. |
check_in_url | No | string(128) | xxx.com | URL for online check-in. |
air_model | Yes | string(24) | Airbus A320 | Aircraft model, up to 8 Chinese characters. |
departure_time | Yes | string(128) | 1434507901 | Departure time in the Unix timestamp format. |
landing_time | Yes | string(128) | 1434909901 | Landing time in the Unix timestamp format. |
Base_info fields (For details, see 1.1 Fields of the "Create Meeting Ticket" API )
Response Description
Example:
{
"errcode":0,
"errmsg":"ok",
"card_id":"p1Pj9jr90_SQRaVqYI239Ka1erkI"
}
Parameter | Description |
---|---|
errcode | Error code. 0 indicates a successful request. |
errmsg | Error message |
card_id | Coupon ID |
# 4.2 Updating Air Tickets
API Request Format
httpRequest method: POST
URL:https://api.weixin.qq.com/card/boardingpass/checkin?access_token=TOKEN
Parameters
Parameter | Required | Description |
---|---|---|
access_token | Yes | The credential for API call |
POST data | Yes | JSON data |
{
"code": "198374613512",
"card_id":"p1Pj9jr90_SQRaVqYI239Ka1erkI",
"passenger_name": "Passenger name",
"class": "Class",
"seat": "Seat",
"etkt_bnr": "E-ticket number",
"qrcode_data": "QR code data",
"is_cancel ": false
}
Parameter | Required | Type | Example | Description |
---|---|---|---|---|
code | Yes | string(20) | 1231123 | Coupon code. |
card_id | No | string (32) | p1Pj9jr90_SQRaVqYI239Ka1erkI | Coupon ID. Required for coupon with custom code. |
etkt_bnr | Yes | string (14) | 1234567 | E-ticket number, up to 14 numbers. |
class | Yes | string (15) | Economy class | Class, such as first class, up to 5 Chinese characters. |
qrcode_data | No | string (3072) | 12345 | QR code data. The QR code string the passenger used for check-in. Weixin generates the check-in QR code from the data. |
seat | No | string (12) | 5C | Seat of the passenger. |
is_cancel | No | bool | false | Indicates whether to cancel the check-in. Enter true or false (default). When the value is true, the check-in will be canceled with all the fields above (such as class) ignored. The ticket will return to the status before check-in and the passenger can check in again. |
Response Description
Example:
{
"errcode":0,
"errmsg":"ok"
}
Parameter | Description |
---|---|
errcode | Error code. 0 indicates a successful request. |
errmsg | Error message |
